New Holland TS125A
|
|
| Production | |
| Manufacturer | New Holland (a part of CNH) |
| Utility tractor | |
| Built in Basildon, England | |
| New Holland TS125A Engine | |
| Iveco 6.7L 6-cyl diesel | |
| Fuel tank | 67.1 gal 254.0 L |
| SuperSteer Fuel tank | 62.3 gal 235.8 L |
 Engine details ... | |
| New Holland TS125A Transmissions | |
| 24-speed two-speed power shift | |
| 16-speed partial power shift | |
 Transmission details ... |
| New Holland TS125A Power | |
| Engine (gross) | 125 hp 93.2 kW |
| Engine (max) | 154 hp 114.8 kW |
| PTO (claimed) | 105 hp 78.3 kW |
| Drawbar (tested) | 88.5 hp 66.0 kW |
| PTO (tested) | 121.2 hp 90.4 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | electro-hydraulic rear |
| Power steering | |
| Hydraulic wet disc brakes | |
| Two-post folding ROPS. Cab available with air-conditioning. | |

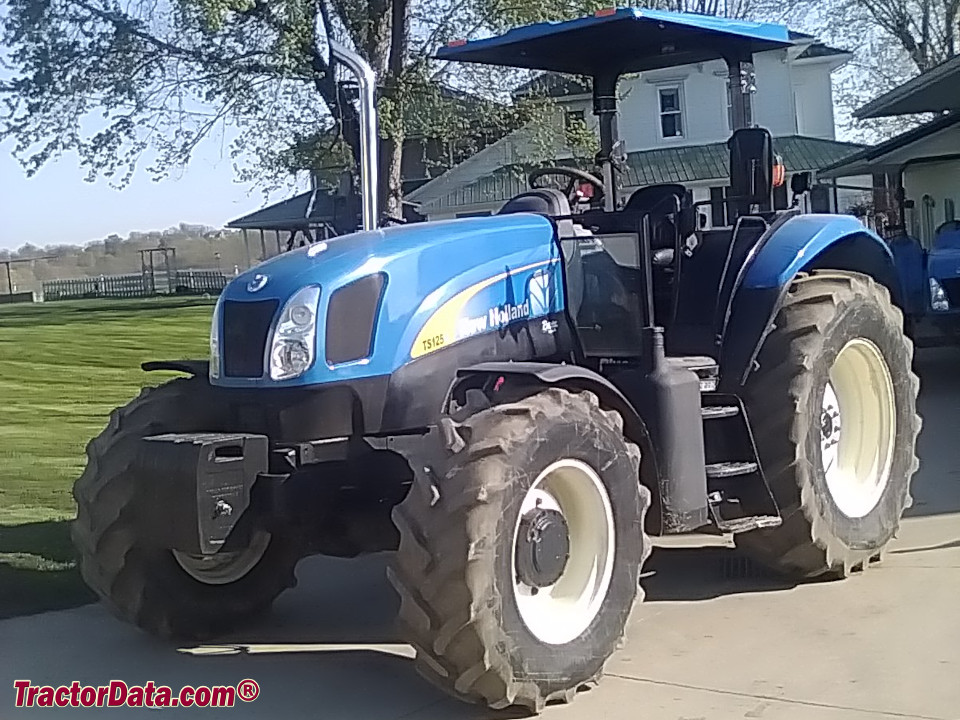

| Photos | |
 | |
 New Holland TS125A photos... | |
| Hydraulics | |
| Type | open center |
| closed-center load sensing OptOptional | |
| Pressure | 3046 psi 210.0 bar |
| Rear valves | 2 to 4 |
| Mid valves | 2 OptOptional |
| Pump flow | 19.8 gpm (open center) 74.9 lpm |
| 26.5 gpm (closed center) 100.3 lpm | |
| Steering flow | 10.5 gpm 39.7 lpm |
| Tractor hitch | |
| Rear Type | II |
| IIIN/II *Category 3 hitch available with electronic draft control. | |
| Control | mechanical lower-link draft sensing |
| electronic draft control OptOptional | |
| Rear lift (at 24"/610mm) | 9285 lbs 4211 kg |
| 9620 lbsOptOptional 4363 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic wet disc |
| Rear PTO Type | 540/1000 (1.375) |
| Engine RPM | 540@1969 |
| 540E@1546 | |
| 1000@2120 | |
| Dimensions & Tires | |
| 2WD Wheelbase | 104.4 inches 265 cm |
| Terraglide Wheelbase | 104.8 inches 266 cm |
| SuperSteer Wheelbase | 108.7 inches 276 cm |
| Weight | 10890 lbs 4939 kg |
| Front tire | 14.9R28 |
| Rear tire | 18.4R38 |
 Full dimensions and tires ... | |
| New Holland TS125A attachments | |
| front-end loader | |
 Attachment details ... |
| TS125A Serial Numbers | |
| Location: | Serial number decal on the left side of the tractor, on the lower part of the radiator support bracket. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| ROPS Charging amps | 70 |
| Cab Charging amps | 120 |
| Battery volts | 12 |
| References | |
 | |
| TS-A Series Tractors published in 2003, by New Holland | |
| TS-A Series Tractors published in 2004, by New Holland | |
| TS-A Tractors published in 2003, by New Holland | |
| TS-A Plus Tractors published in 2006, by New Holland | |
| TS-A Series Tractors published in 2006, by New Holland | |
| Operator's Manual TS-A Series Tractors (87037956) published in 2003 |
