New Holland TS115A



New Holland TS115A tractor photo
2003 - 2006
TS-A Series
Utility tractor
Series map:
TS110A
TS115A
TS125A
110.0hp
115.0hp
125.0hp
Production
ManufacturerNew Holland (a part of CNH)
Utility tractor
Built in Basildon, England
Variants
TS115A Deltaeconomy model
TS115A Pluspremium model
MXU115similar CaseIH model
New Holland TS115A Engine
Iveco 6.7L 6-cyl diesel
Fuel tank67.1 gal
254.0 L
SuperSteer Fuel tank62.3 gal
235.8 L
Engine details ...
New Holland TS115A Transmissions
12-speed partially synchronized
24-speed two-speed power shift
16-speed four-speed power shift
Transmission details ...
New Holland TS115A Power
Engine (gross)115 hp
85.8 kW
PTO (claimed)95 hp
70.8 kW
Mechanical
Two- or four-wheel drive
Differential lockelectro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Two-post folding ROPS. Cab available with air-conditioning.
Photos

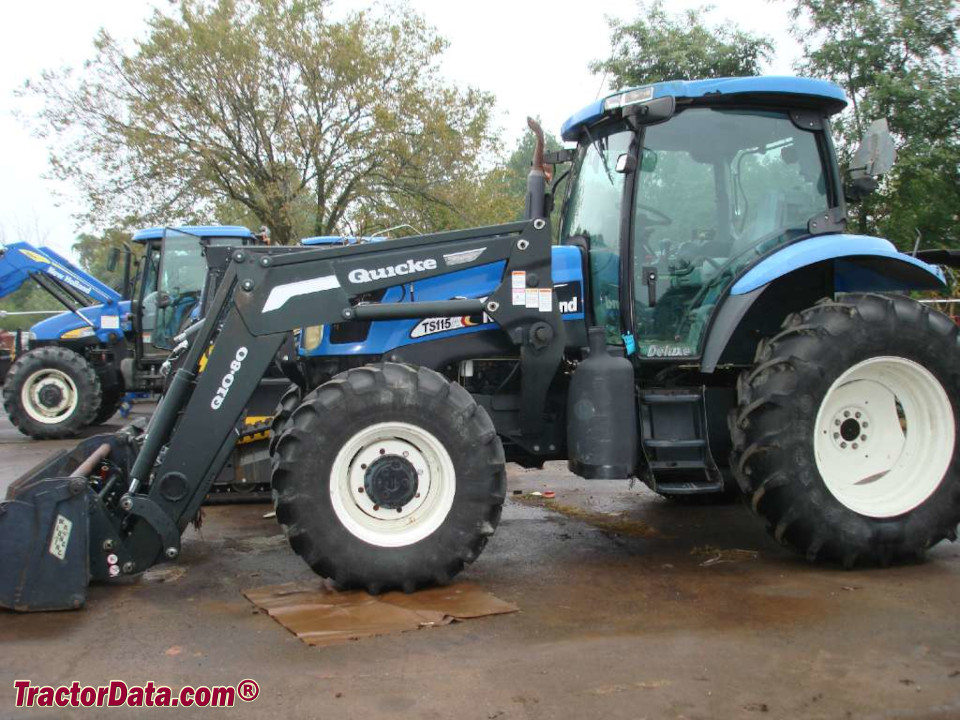

New Holland TS115A utility tractor with Quicke Q10-80 front-end loader.
New Holland TS115A photos...
Hydraulics
Typeopen center
 closed-center load sensing OptOptional
Pressure3046 psi
210.0 bar
Rear valves2 to 4
Mid valves2 OptOptional
Pump flow16.6 gpm (open center)
62.8 lpm
 19.8 gpm (open center)
74.9 lpm
 26.5 gpm (closed center)
100.3 lpm
Steering flow10.5 gpm
39.7 lpm
Tractor hitch
Rear TypeII
Rear lift (at ends)17337.1 lbs
7864 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000 (1.375)
Engine RPM540@1969
 540E@1546
 1000@2120
Dimensions & Tires
2WD Wheelbase104.4 inches
265 cm
Terraglide Wheelbase104.8 inches
266 cm
SuperSteer Wheelbase108.7 inches
276 cm
Weight10824 lbs
4909 kg
Front tire14.9R28
Rear tire18.4R38
Full dimensions and tires ...
TS115A Serial Numbers
Location:Serial number decal on the left side of the tractor, on the lower part of the radiator support bracket.
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps70
Cab Charging amps120
Batteries1
 2 OptOptional
Battery CCA800
Battery volts12
References
TS115A references literature
TS-A Series Tractors published in 2003, by New Holland
TS-A Series Tractors published in 2004, by New Holland
TS-A Tractors published in 2003, by New Holland
TS-A Delta Tractors published in 2006, by New Holland
TS-A Plus Tractors published in 2006, by New Holland
TS-A Series Tractors published in 2006, by New Holland
Operator's Manual TS-A Series Tractors (82999130) published in 2005
Operator's Manual TS-A Series Tractors (87037956) published in 2003
