New Holland TS125A Transmission
|
|
| Transmission options | |
| 24-speed two-speed power shift | |
| 16-speed partial power shift |
| Transmission | |
| Transmission | Dual Command |
| Type | two-speed power shift |
| Gears | 24 forward and reverse |
| Four gears in three ranges with shuttle lever and an additional powershift button on the gear lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range. | |
| Transmission | |
| Transmission | Electro Command |
| Type | partial power shift |
| Gears | 16 forward and reverse |

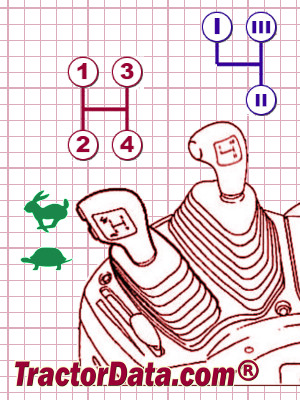

| Four gears in four ranges. Push-button shifting between gears. Clutchless shifting between ranges A-B and ranges C-D. Computer-controlled Autoshift. | |

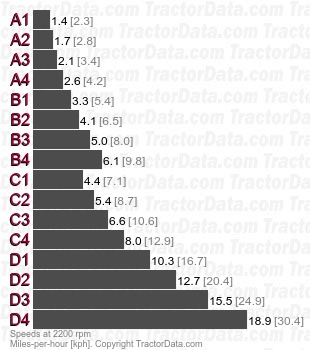

| Speeds | |
| With 18.4-38 rear tires and 30 kph transmission option. | |
|
