CaseIH MXU115
|
|
| Production | |
| Manufacturer | CaseIH |
| Utility tractor | |
| Built in Basildon, England | |
| Variants | |
| MXU115 Limited | premium model |
| MXU115 Value | economy model |
| TS115A | similar New Holland model |
| CaseIH MXU115 Engine | |
| CNH 6.7L 6-cyl diesel | |
| Fuel tank | 67 gal 253.6 L |
 Engine details ... | |
| CaseIH MXU115 Transmissions | |
| 16-speed synchromesh | |
| 16-speed partial powershift | |
| 24-speed partial powershift | |
 Transmission details ... |
| CaseIH MXU115 Power | |
| Engine (gross) | 116 hp 86.5 kW |
| PTO (claimed) | 95 hp 70.8 kW |
| Drawbar (tested) | 93.4 hp 69.6 kW |
| PTO (tested) | 104.7 hp 78.1 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | planetary inboard |
| Differential lock | electro-hydraulic |
| Power steering | |
| Differential hydraulic wet disc brakes | |
| Two-post folding ROPS. Cab available with air-conditioning. | |
| Photos | |
 | |

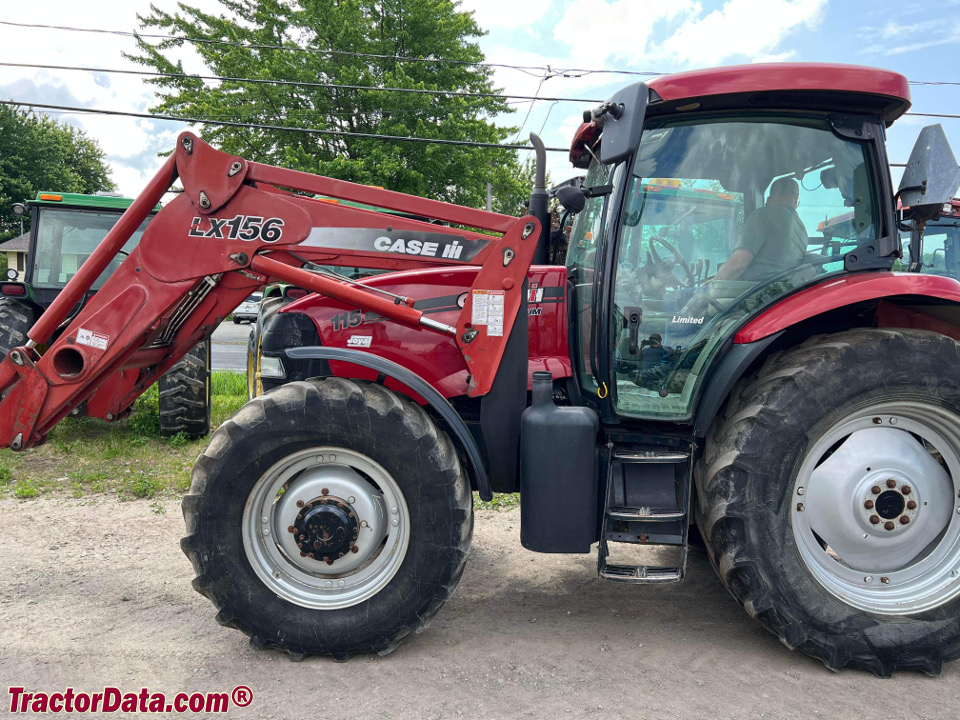

 CaseIH MXU115 photos... | |
| Hydraulics | |
| Type | open center |
| pressure-flow compensated (PFC)OptOptional | |
| Valves | 2 to 4 |
| Pump flow | 16.6 gpm (open center) 62.8 lpm |
| 19.8 gpm (closed center) 74.9 lpm | |
| 26.5 gpm (closed center)OptOptional 100.3 lpm | |
| Total flow | 27.1 gpm (open center) 102.6 lpm |
| 30.3 gpm (closed center) 114.7 lpm | |
| 37 gpm (closed center)OptOptional 140.0 lpm | |
| Steering flow | 10.5 gpm 39.7 lpm |
| Tractor hitch | |
| Rear Type | II/IIIN |
| Control | mechanical lower-link sensing |
| electronic draft control OptOptional | |
| Rear lift (at 24"/610mm) | 4878 lbs 2212 kg |
| 8813 lbsOptOptional 3997 kg | |
| 12185 lbsOptOptional 5527 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic wet disc |
| Rear PTO Type | 540/1000 (1.375) |
| Dimensions & Tires | |
| 2WD Wheelbase | 104.4 inches 265 cm |
| 4WD Wheelbase | 104.7 inches 265 cm |
| Weight | 11840 lbs 5370 kg |
| Front tire | 10.00-16 |
| 2WD Rear tire | 18.4R38 |
 Full dimensions and tires ... | |
| CaseIH MXU115 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 120 |
| Battery CCA | 800 |
| 960 OptOptional | |
| 1300 OptOptional | |
| Battery volts | 12 |
| References | |
 | |
| MXU Series Maxxum Tractors published in 2005, by CaseIH |
