John Deere 4110
| | 2002 - 2006 |
| 4000 Ten Compact Series | | Compact Utility tractor | | Yanmar built |
|
Series map:
4010
4110
4115
18.5hp
20.0hp
24.0hp
| Production |
| Distributor | John Deere
|
| Manufacturer | Yanmar
|
| Compact Utility tractor |
| Built in Japan |
| John Deere 4110 Power |
| Engine (gross) | 20 hp
14.9 kW
|
| Engine (net) | 19 hp
14.2 kW
|
| PTO (claimed) | 17 hp
12.7 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | spur gear
|
| Differential lock | mechanical rear
|
| Steering | power
|
| Two-post folding ROPS. |
| Capacity |
| Fuel | 5.8 gal
22.0 L
|
| Hydraulic system | 3.6 gal
13.6 L
|
| Front axle | 3.6 qts
3.4 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 3.6 gal
13.6 L
|
| Valves | 5
|
| Pump flow | 5.1 gpm
19.3 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift (at 24"/610mm) | 1150 lbs
521 kg
|
| Power Take-off (PTO) |
| Gear Rear PTO | transmission
|
| Hydro Rear PTO | independent
|
| Rear PTO Type | 540
|
| Mid PTO | indpendent
|
| Mid PTO Type | 2100
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 20
|
| Battery CCA | 435
|
| Battery volts | 12
|
| References |
 |
| Operator's Manual 410 and 420 Loaders (OMC49370) published in 2005 |
| 4000 TEN Series 18 To 48 HP published in 2001, by John Deere |
| The New John Deere 4000 TEN Series Tractors published in 2002 |
| 4000 TEN Series - The tractor redefined published in 2001, by John Deere |
| 4000 TEN Series Product Information Handbook published in 2003, by John Deere |
| Commercial & Consumer Equipment Purchase Guide published in 2005, by John Deere |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on August 12, 2024 |
http://techpubs.deere.com/ - Official operator manuals for purchase or download from Deere.
|
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

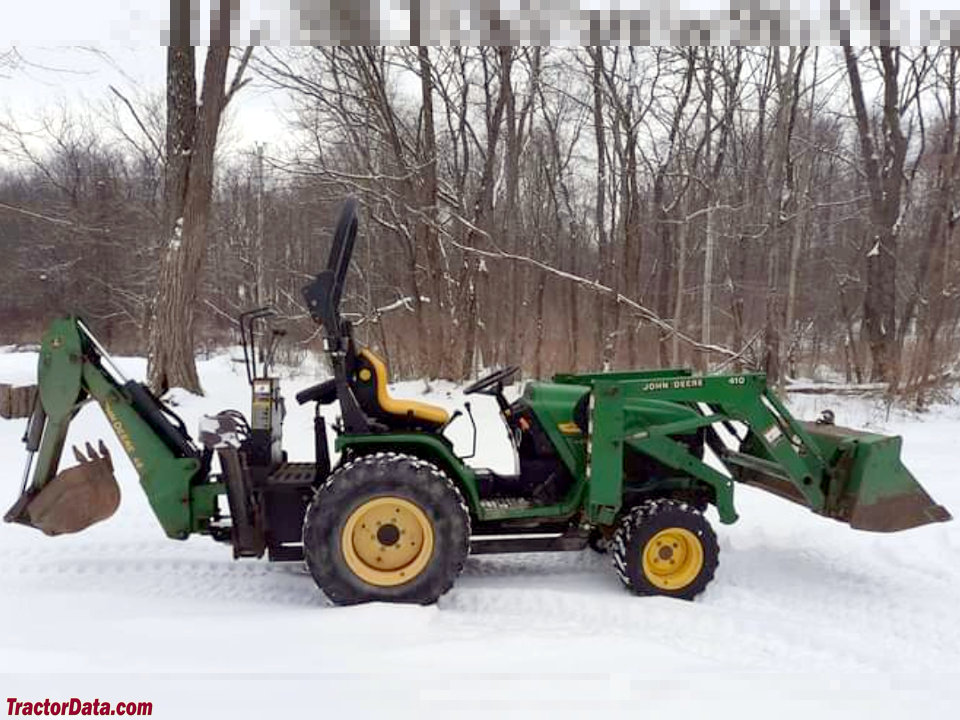

John Deere 4110 photos...
