John Deere 4010
2002 - 2005 4000 Ten Compact Series Compact Utility tractor Yanmar built
Series map:
4010
4110
18.5hp
20.0hp
Production Distributor John Deere
Manufacturer Yanmar
Compact Utility tractor Built in Japan
John Deere 4010 Power Engine (gross) 18.5 hp13.8 kW
Engine (net) 18 hp13.4 kW
PTO (claimed) 14 hp10.4 kW
Mechanical Four-wheel drive Final drives spur gear
Differential lock mechanical rear
Steering hydrostatic power
Wet disc brakes Two-post ROPS.
Capacity Fuel 3.4 gal12.9 L
Hydraulic system 2.6 gal9.8 L
Front axle 3.6 qts3.4 L
Hydraulics Type open center
Capacity 2.6 gal9.8 L
Tractor hitch Rear Type I
Rear lift (at 24"/610mm) 860 lbs390 kg
Power Take-off (PTO) Rear PTO independent
Rear PTO Type 540
Mid PTO Type 2100
4010 Serial Numbers Location: Serial number plate on right side above the tractor's front axle.
2002 LV4010H100001
2003 LV4010H210001
2004 LV4010H310001
2005 LV4010H410001
FAQ: How to read a serial number table.
Electrical Ground negative
Charging system alternator
Charging amps 20
Battery CCA 435
Battery volts 12

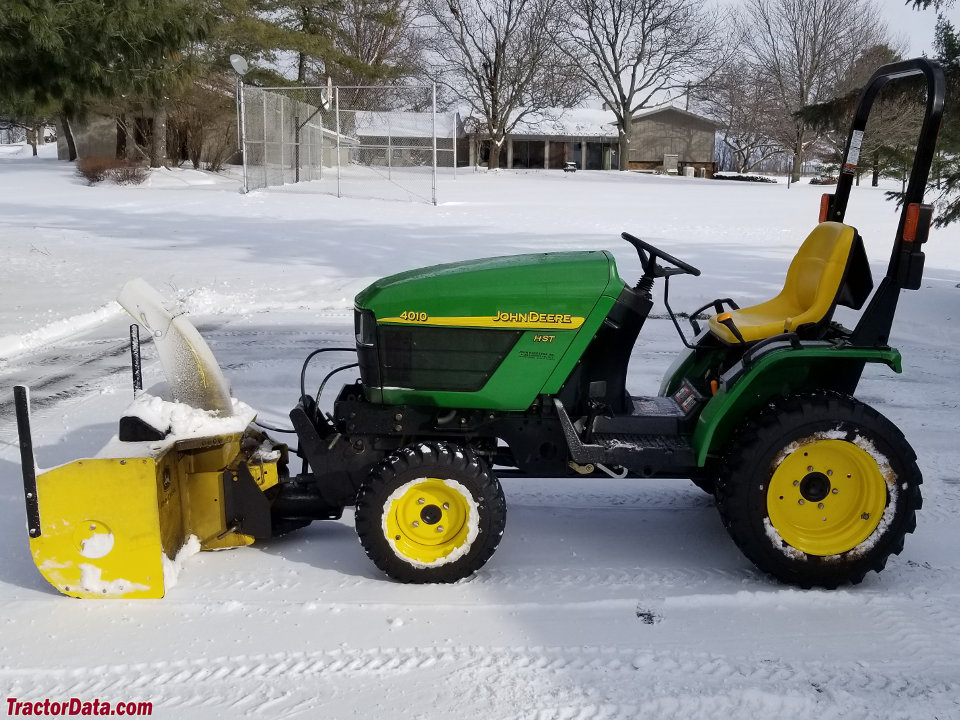

Questions I just purchased a 2005 JD 4010 compact tractor, in your data pages there
is a photo of this tractor with a quick connect front hitch with a snow
blower attached. I would like to find that hitch but I'm told that there
isn't one made for it? Any chance you would know what the part number is
for the one in the photo?
I would like to put a snow plow on it.
To mount a front implement you need the LVB25293 front support kit, if you don't already have it, and the BM18644 front hitch (replaced by LVB24898).
Email: Peter@TractorData.com
References Operator's Manual 410 and 420 Loaders (OMC49370) published in 2005 4000 TEN Series 18 To 48 HP published in 2001, by John Deere The New John Deere 4000 TEN Series Tractors published in 2002 4000 TEN Series - The tractor redefined published in 2001, by John Deere 4000 TEN Series Product Information Handbook published in 2003, by John Deere Commercial & Consumer Equipment Purchase Guide published in 2005, by John Deere
