John Deere 4115

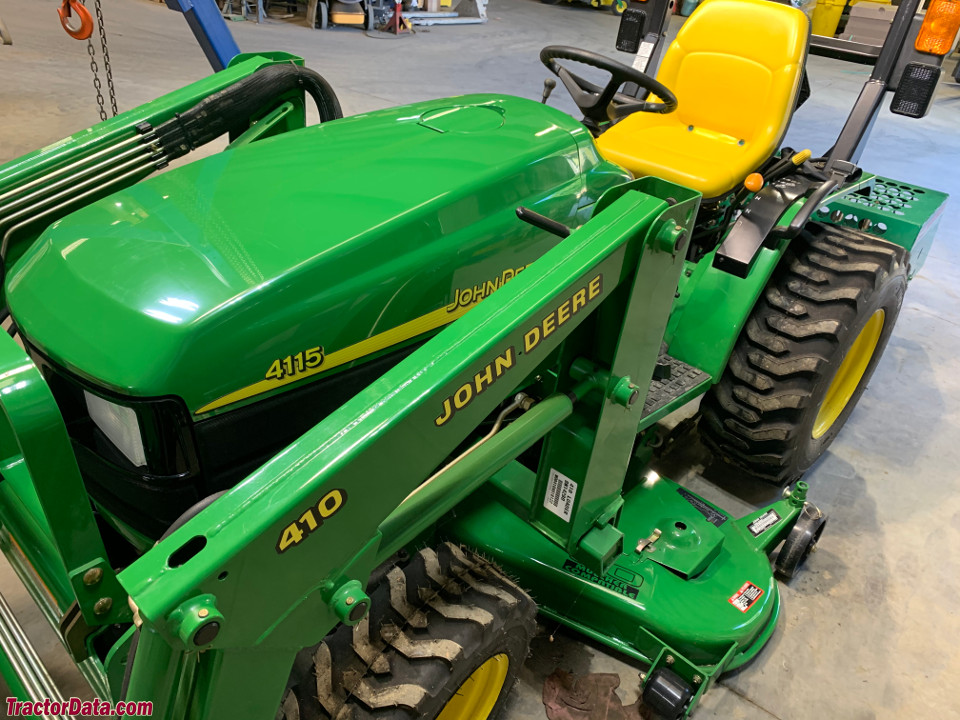

John Deere 4115 tractor photo
2002 - 2004
4000 Ten Compact Series
Compact Utility tractor
Yanmar built
Series map:
4110
4115
4210
20.0hp
24.0hp
27.0hp
Production
DistributorJohn Deere
ManufacturerYanmar
Compact Utility tractor
Built in Japan
John Deere 4115 Engine
Yanmar 1.2L 3-cyl diesel
Engine details ...
John Deere 4115 Transmission
hydrostatic
Transmission details ...
John Deere 4115 Power
Engine (gross)24 hp
17.9 kW
Engine (net)23.5 hp
17.5 kW
PTO (claimed)20 hp
14.9 kW
Mechanical
Four-wheel drive
Final drivesspur gear
Differential lockmechanical rear
Steeringpower
Two-post folding ROPS.
Photos
John Deere 4115
John Deere 4115 photos...
Capacity
Fuel7.1 gal
26.9 L
Hydraulic system3.9 gal
14.8 L
Front axle3.6 qts
3.4 L
Hydraulics
Typeopen center
Capacity3.9 gal
14.8 L
Valves5
Pump flow5.1 gpm
19.3 lpm
Tractor hitch
Rear TypeI
Rear lift (at 24"/610mm)1150 lbs
521 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Engine RPM540@2650
Mid PTOindependent
Mid PTO Type2100
Engine RPM2100@2650
Dimensions & Tires
Wheelbase64.6 inches
164 cm
Weight1771 lbs
803 kg
Front tire7.00-12
Rear tire35x12.00-16.5
Full dimensions and tires ...
John Deere 4115 attachments
60" mid-mount mower deck
72" mid-mount mower deck
front-end loader
backhoe
Attachment details ...
4115 Serial Numbers
Location:Serial number decal on the right side of the tractor frame, above the front axle.
2002110000
2003210000
2004310000
2005410000

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps20
Battery CCA435
Battery volts12
References
4115 references literature
Operator's Manual 410 and 420 Loaders (OMC49370) published in 2005
4000 TEN Series 18 To 48 HP published in 2001, by John Deere
The New John Deere 4000 TEN Series Tractors published in 2002
4000 TEN Series - The tractor redefined published in 2001, by John Deere
4000 TEN Series Product Information Handbook published in 2003, by John Deere
Operator's Manual 4110 and 4115 Compact Utility Tractors (OMLVU13326) published in 2002
Commercial & Consumer Equipment Purchase Guide published in 2005, by John Deere
