Tractors > John Deere > 2320

John Deere 2320



John Deere 2320 tractor photo
2006 - 2011
2000 Twenty Series
Compact Utility tractor
Series map:
2320
2520
24.1hp
26.4hp
Production
ManufacturerJohn Deere
Compact Utility tractor
Built in Augusta, Georgia, USA
John Deere 2320 Engine
Yanmar 1.1L 3-cyl diesel
Engine details ...
John Deere 2320 Transmission
hydrostatic
Transmission details ...
John Deere 2320 Power
Engine (gross)24.1 hp
18.0 kW
PTO (claimed)18 hp
13.4 kW
Mechanical
Four-wheel drive
Final drivesspur gear
Steeringpower
Wet disc brakes
Two-post folding ROPS.
Photos
John Deere 2320
John Deere 2320 photos...
Capacity
Fuel6.1 gal
23.1 L
Hydraulic system2.6 gal
9.8 L
Hydraulics
Typeopen center
Capacity2.6 gal
9.8 L
Pressure2421 psi
166.9 bar
Valves2
Pump flow3.4 gpm
12.9 lpm
Total flow5.6 gpm
21.2 lpm
Steering flow2.2 gpm
8.3 lpm
Tractor hitch
Rear TypeI
Controlposition control
Rear lift (at ends)1433 lbs
650 kg
Rear lift (at 24"/610mm)1150 lbs
521 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
Mid PTOindependent
Mid PTO Type2100
Dimensions & Tires
Wheelbase63 inches
160 cm
Weight1660 lbs
752 kg
Front tire23x8.5-12
Rear tire31x12-16.5
Full dimensions and tires ...
John Deere 2320 attachments
54" mid-mount mower deck
front-end loader
backhoe
Attachment details ...

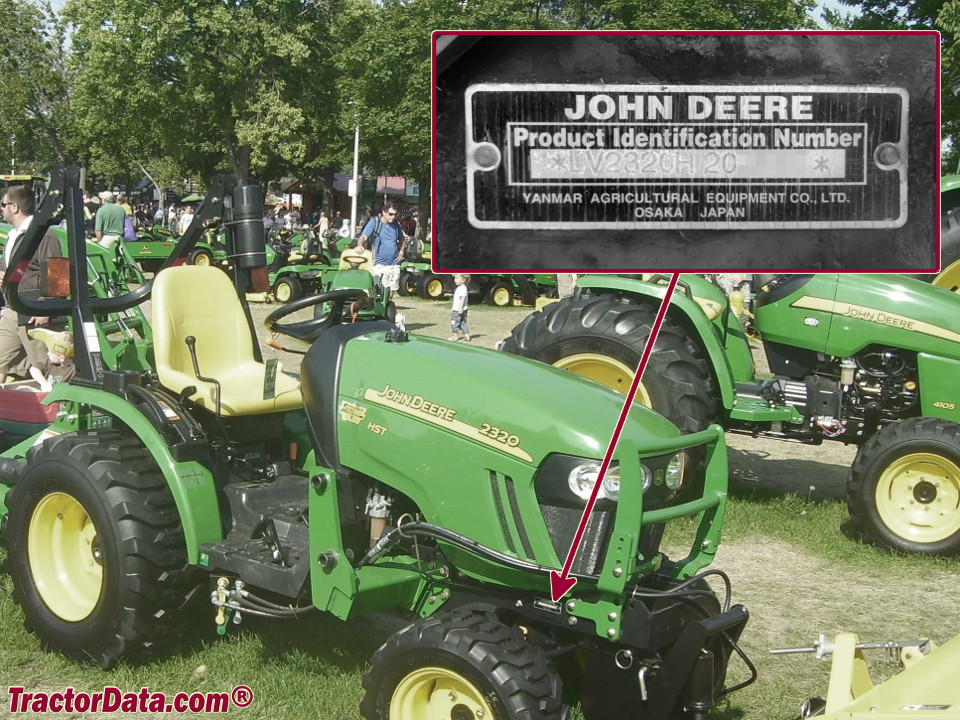

2320 Serial Number Location
John Deere 2320 serial number location
Serial number on the right side of the tractor frame, above the front axle.
2320 Serial Numbers
2006H100001 (USA)
2007H202001 (USA)
2008H302001 (USA)
2009H402001 (USA)
2010H502001 (USA)
2011H610001 (USA)
2007E286001 (EU)
2008E382001 (EU)
2009E482001 (EU)
2010E582001 (EU)
2011E61001 (EU)

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps20
Battery CCA500
Battery volts12
References
2320 references literature
Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere
2000 Series Compact Utility Tractors published in 2008, by John Deere
2000 Twenty Series Compact Tractors published in 2005, by John Deere
2000 Series Compact Utility Tractors published in 2008, by John Deere
TWENTY Series Tractors published in 2010, by John Deere
