John Deere 4110 Transmission

2002 - 2006

4000 Ten Compact Series

Compact Utility tractor

Yanmar built

		4100 ↑
Series:	4010 ←	4110	→ 4115
		2320 ↓

Transmissions overview
8-speed unsynchronized gear
hydrostatic

Transmission

Type:

unsynchronized gear

Gears:

8 forward and 4 reverse

Oil capacity:

14.4 qts
13.6 L

Oil type:

122^o↔0^oF [50^o↔-17^oC]	: HY-GARD
80^o↔-40^oF [26^o↔-40^oC]	: Low-viscosity HY-GARD

Unsynchronized four-speed transmission with high, low, and reverse ranges. Tractor must be stopped, and clutch used, to shift ranges and gears.

Speeds
With 9.5-16 rear tires.

Transmission

Type:

hydrostatic

Gears:

infinite (2-range) forward and reverse

Oil capacity:

14 qts
13.2 L

Oil type:

122^o↔0^oF [50^o↔-17^oC]	: HY-GARD
80^o↔-40^oF [26^o↔-40^oC]	: Low-viscosity HY-GARD

The 4110 has an optional two-range hydrostatic transmission controlled by forward and reverse foot pedals. The tractor must be stopped to shift between high and low ranges.

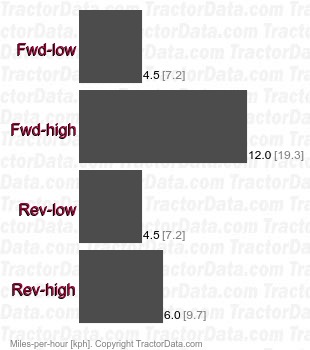

Speeds
With 9.5-16 rear tires.
