New Holland TS100A



New Holland TS100A tractor photo
2003 - 2005
TS-A Series
Utility tractor
Series map:
TS100A
TS110A
74.6kw
82.0kw
Production
ManufacturerNew Holland (a part of CNH)
Utility tractor
Built in Basildon, England
Variants
TS100A Deltaeconomy model
TS100A Pluspremium model
New Holland TS100A Engine
Iveco 4.5L 4-cyl diesel
Fuel tank47.6 gal
180.2 L
SuperSteer Fuel tank41.2 gal
155.9 L
Engine details ...
New Holland TS100A Transmissions
12-speed partially synchronized
24-speed two-speed power shift
16-speed four-speed power shift
Transmission details ...
New Holland TS100A Power
Engine (gross)100 hp
74.6 kW
PTO (claimed)80 hp
59.7 kW
Drawbar (tested)74.7 hp
55.7 kW
PTO (tested)87.7 hp
65.4 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockelectro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Two-post folding ROPS. Cab available with air-conditioning.
Photos

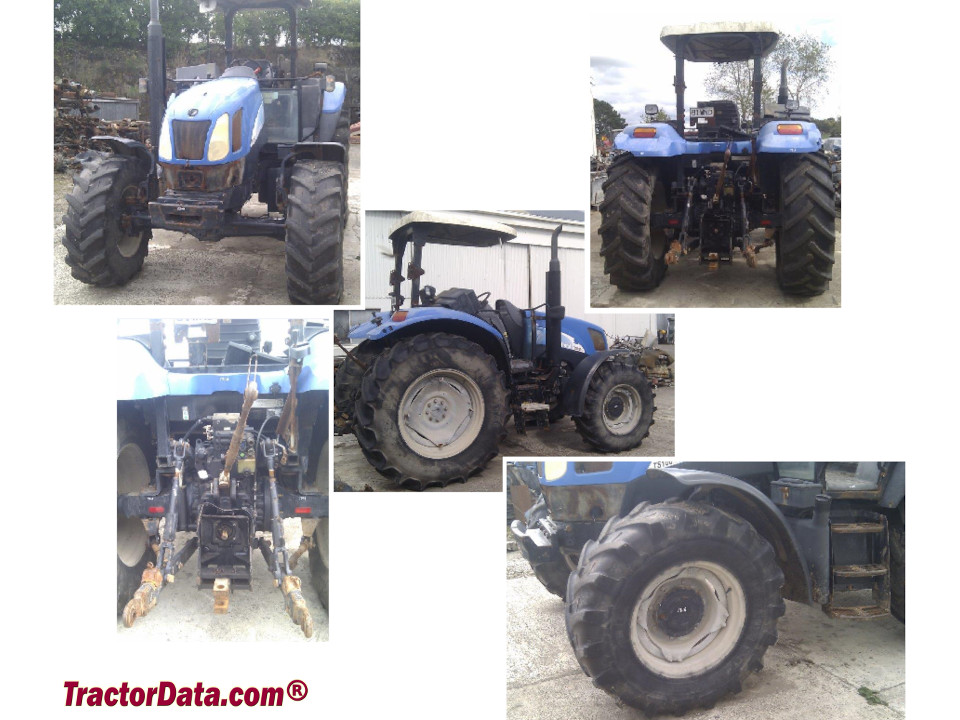

New Holland TS100A utility tractor.
New Holland TS100A photos...
Hydraulics
Typeopen center
 closed-center load sensing OptOptional
Pressure2755 psi
190.0 bar
 2974 psi
205.1 bar
Rear valves2 to 4
Mid valves2 OptOptional
Pump flow16.6 gpm (open center)
62.8 lpm
 19.8 gpm (open center)
74.9 lpm
 26.5 gpm (closed center)
100.3 lpm
Steering flow10.5 gpm
39.7 lpm
Tractor hitch
Rear TypeII
Rear lift (at ends)13708.3 lbs
6218 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000 (1.375)
Engine RPM540@1969
 540E@1546
 1000@2120
Dimensions & Tires
2WD Wheelbase95 inches
241 cm
Terraglide Wheelbase95.3 inches
242 cm
SuperSteer Wheelbase99.2 inches
251 cm
Weight10053 lbs
4560 kg
Front tire13.6R28
Rear tire16.9R38
Full dimensions and tires ...
New Holland TS100A attachments
front-end loader
Attachment details ...
TS100A Serial Numbers
Location:Serial number decal on the left side of the tractor, on the lower part of the radiator support bracket.
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps70
Cab Charging amps120
Battery volts12
References
TS100A references literature
TS-A Series Tractors published in 2003, by New Holland
TS-A Series Tractors published in 2004, by New Holland
TS-A Tractors published in 2003, by New Holland
TS-A Delta Tractors published in 2006, by New Holland
TS-A Plus Tractors published in 2006, by New Holland
TS-A Series Tractors published in 2006, by New Holland
Operator's Manual TS-A Series Tractors (82999130) published in 2005
Operator's Manual TS-A Series Tractors (87037956) published in 2003
