| | 2003 - 2005 |
| TS-A Series | | Utility tractor |
|
Series map:
TS100A
TS110A
75.3kw
83.5kw
| Transmission options |
| 12-speed partially synchronized |
| 24-speed two-speed power shift |
| 16-speed four-speed power shift |
| Transmission |

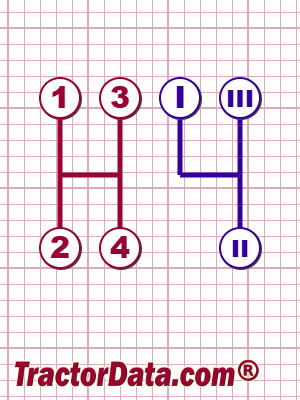

| Transmission | Synchro Command
|
| Type | partially synchronized
|
| Gears | 12 forward and reverse
|
| Four gears provided in three ranges, plus a shuttle lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range. |
| Transmission |

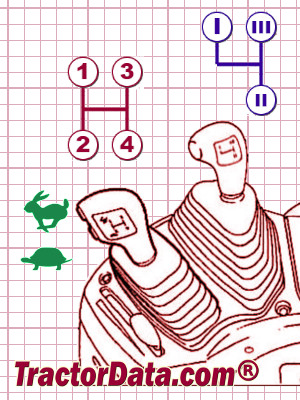

| Transmission | Dual Command
|
| Type | two-speed power shift
|
| Gears | 24 forward and reverse
|
| Same as Synchro Command, with an additional underspeed powershift button on the gear lever. The direct/underspeed ranges may be shifted on the move without the clutch. A 'dump button' on the shuttle lever can be used for clutchless shifting between forward and reverse. |
| Transmission |
| Transmission | Electro Command
|
| Type | four-speed power shift
|
| Gears | 16 forward and reverse
|
| Four gears in four ranges. Push-button shifting between gears. Clutchless shifting between ranges A-B and ranges C-D. The Autoshift tranmssion adds automatic computer-controlled shifting to the 16-speed transmission. |
