CaseIH Magnum 310 Tests


CaseIH Magnum 310 tractor photo
2014 -
Magnum Series
Row-Crop tractor
Magnum 290
Series:Magnum 280Magnum 310Magnum 340
OCED Tractor Test 2124

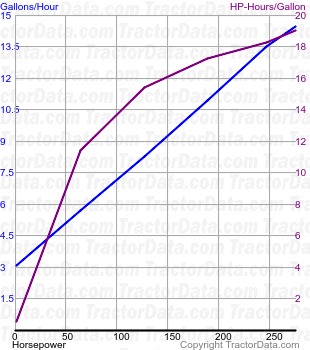

Magnum 310 fuel use from test 987
OCED Tractor Test 2124
Diesel 19-speed 4WD
September 4 - 17, 2015
Link: OCED Tractor Test 2124 file
PTO performance
Max power:313.71 hp
233.9 kW
Fuel use:16.0 gal/hour
60.6 l/hour
Power at rated engine speed:274.72 hp
204.9 kW
Fuel use:14.5 gal/hour
54.9 l/hour
Power at rated PTO speed:313.71 hp
233.9 kW
Fuel use:16.0 gal/hour
60.6 l/hour
Drawbar performance
Max power:234.51 hp
174.9 kW
Fuel use:14.5 gal/hour
54.9 l/hour
Gear 7 used for power test.
Max pull:24097 lbs
10930 kg
Gear 5 used for pull test.
