CaseIH Magnum 310 Engine


CaseIH Magnum 310 tractor photo
2014 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 280
Magnum 310
Magnum 340
280.0hp
310.0hp
340.0hp
Engine Detail
FPT
wastegate turbocharger diesel
6-cylinder 24-valve
liquid-cooled
Displacement531 ci
8.7 L
Bore/Stroke4.606x5.315 inches
117 x 135 mm
EmissionsTier IV
Emission controlselective catalytic reduction (SCR)
Rated Power (gross)310 hp
231.2 kW
Maximum Power (gross)345 hp
257.3 kW
 380 hp (boost)
283.4 kW
Fuel systemelectronic high pressure common rail direct injection
Cooling systemBorgWarner Visctronic  fan
Rated RPM2000
Starterelectric
Starter volts12
CaseIH Magnum 310 Engine

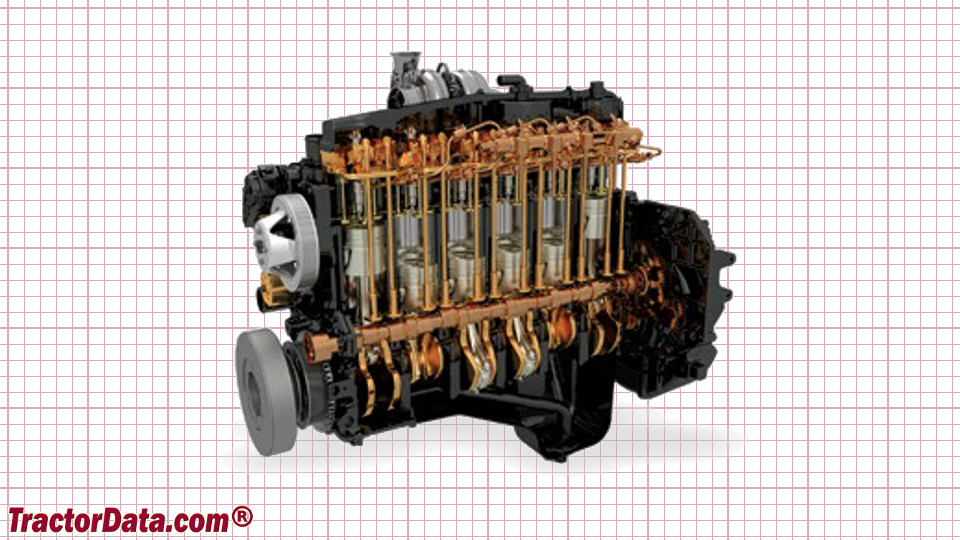

CaseIH Magnum 310 engine image
