CaseIH Magnum 310
|
|
| Production | |
| Manufacturer | CaseIH (a part of CNH) |
| Row-Crop tractor | |
| Built in Racine, Wisconsin, USA | |
| Original price | $275,312 (2014 Power Shift ) |
| $288,654 (2014 CVT ) | |
| Variants | |
| T8.380 | similar New Holland model |
| CaseIH Magnum 310 Engine | |
| FPT 8.7L 6-cyl diesel | |
| Fuel tank | 179 gal (power shift) 677.5 L |
| 163 gal (CVT) 617.0 L | |
| Exhaust fluid (DEF) | 26 gal 98.4 L |
 Engine details ... | |
| CaseIH Magnum 310 Transmissions | |
| 19-speed full power shift | |
| 18-speed full power shift | |
| continuously variable transmission (CVT) | |
 Transmission details ... |
| CaseIH Magnum 310 Power | |
| Engine (gross) | 310 hp 231.2 kW |
| Engine (max) | 345 hp 257.3 kW |
| PTO (claimed) | 265 hp 197.6 kW |
| Drawbar (tested) | 234.51 hp 174.9 kW |
| PTO (tested) | 313.71 hp 233.9 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Final drives | inboard planetary |
| Power steering | |
| Wet disc brakes | |
| Cab standard with air-conditioning. AFS ready | |

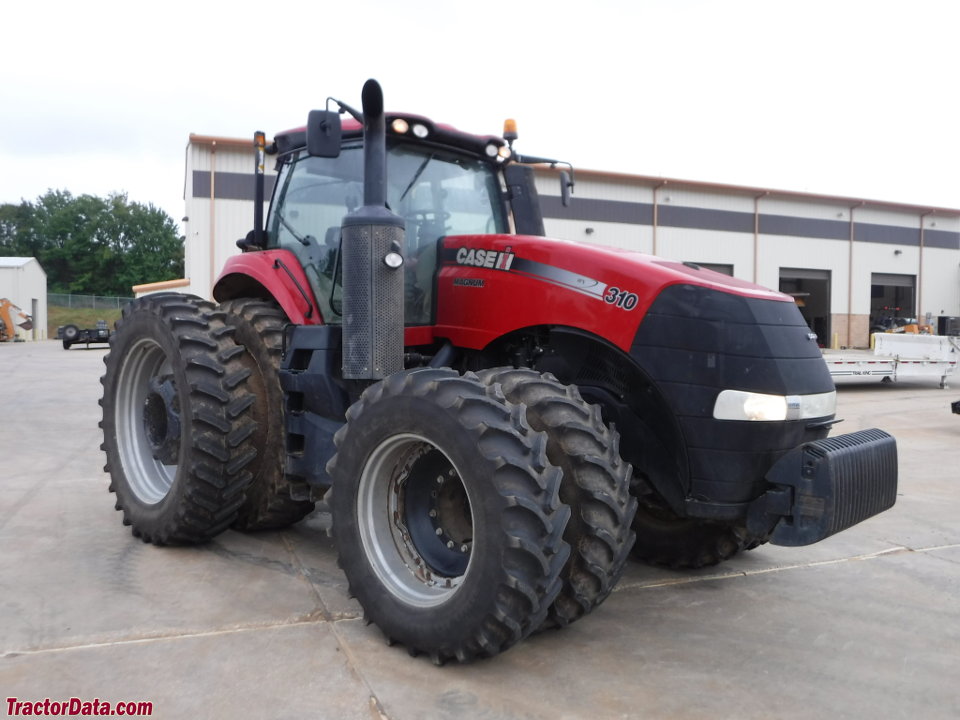

| Photos | |
 | |
 CaseIH Magnum 310 photos... | |
| Hydraulics | |
| Type | variable displacement pressure-flow compensating (PFC) |
| Valves | 4 to 6 |
| Pump flow | 44 gpm 166.5 lpm |
| 59 gpm (optional) 223.3 lpm | |
| 75 gpm (optional) 283.9 lpm | |
| Tractor hitch | |
| Rear Type | III/IIIN |
| III/IVN (optional) | |
| Control | electronic lower link draft sensing |
| Rear lift (at 24"/610mm) | 15900 lbs 7212 kg |
| 17500 lbs (optional) 7938 kg | |
| Rear Arms | Adjustable quick coupler |
| Drawbar | Cat. 3 |
| Cat. 4 (optional) | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
| 540/1000 (1.375)OptOptional | |
| Engine RPM | 540@1800 |
| 1000@1800 | |
| Dimensions & Tires | |
| Wheelbase | 120 inches 304 cm |
| 122 inches (CVT) 309 cm | |
| Weight | 28800 lbs 13063 kg |
| Front tire | 420/8R34 |
| Rear tire | 480/80R50 (duals ) |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 200 |
| Batteries | 2 |
| Battery volts | 12 |
| References | |
 | |
| Magnum 180-380 Tractors published in 2014, by CaseIH | |
| Magnum 250-380 HP Tractors published in 2016, by CaseIH | |
| Magnum Series Tractors published in 2019, by CaseIH |
