CaseIH Magnum 290 Tests


CaseIH Magnum 290 tractor photo
2011 - 2013
Magnum Series
Row-Crop tractor
Magnum 275
Series:Magnum 260Magnum 290Magnum 315
Magnum 310
OCED Tractor Test 2019

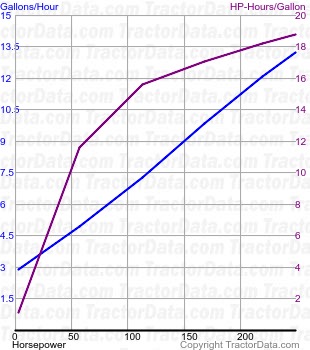

Magnum 290 fuel use from test 818
OCED Tractor Test 2019
Diesel 18-speed 4WD
April 9 - 18, 2012
Link: OCED Tractor Test 2019 file
PTO performance
Max power:300.90 hp
224.4 kW
Fuel use:15.0 gal/hour
56.8 l/hour
Power at rated engine speed:248.43 hp
185.3 kW
Fuel use:13.2 gal/hour
50.0 l/hour
Power at rated PTO speed:300.90 hp
224.4 kW
Fuel use:15.0 gal/hour
56.8 l/hour
Drawbar performance
Max power:213.64 hp
159.3 kW
Fuel use:13.3 gal/hour
50.3 l/hour
Gear 8 used for power test.
Max pull:23521 lbs
10669 kg
Gear 5 used for pull test.
