CaseIH Magnum 340 Tests
|
|
| OCED Tractor Test 2125A | |||
| |||
| OCED Tractor Test 2125A | |
| Diesel 19-speed 4WD September 8 - 17, 2015 Link: OCED Tractor Test 2125A file | |

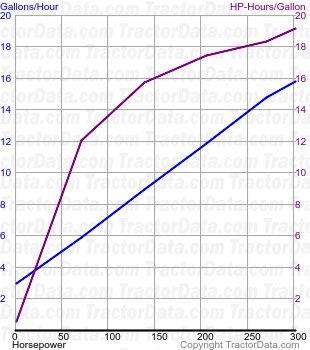

| PTO performance | |
| Max power | 336.17 hp 250.7 kW |
| Fuel use | 17.2 gal/hour 65.1 l/hour |
| Power at rated engine speed | 301.68 hp 225.0 kW |
| Fuel use | 15.8 gal/hour 59.8 l/hour |
| Power at rated PTO speed | 336.17 hp 250.7 kW |
| Fuel use | 17.2 gal/hour 65.1 l/hour |
| Drawbar performance | |
| Max power | 259.32 hp 193.4 kW |
| Fuel use | 15.8 gal/hour 59.8 l/hour |
| Gear 8 used for power test. | |
| Max pull | 24445 lbs 11088 kg |
| Gear 5 used for pull test. | |
