CaseIH Magnum 340

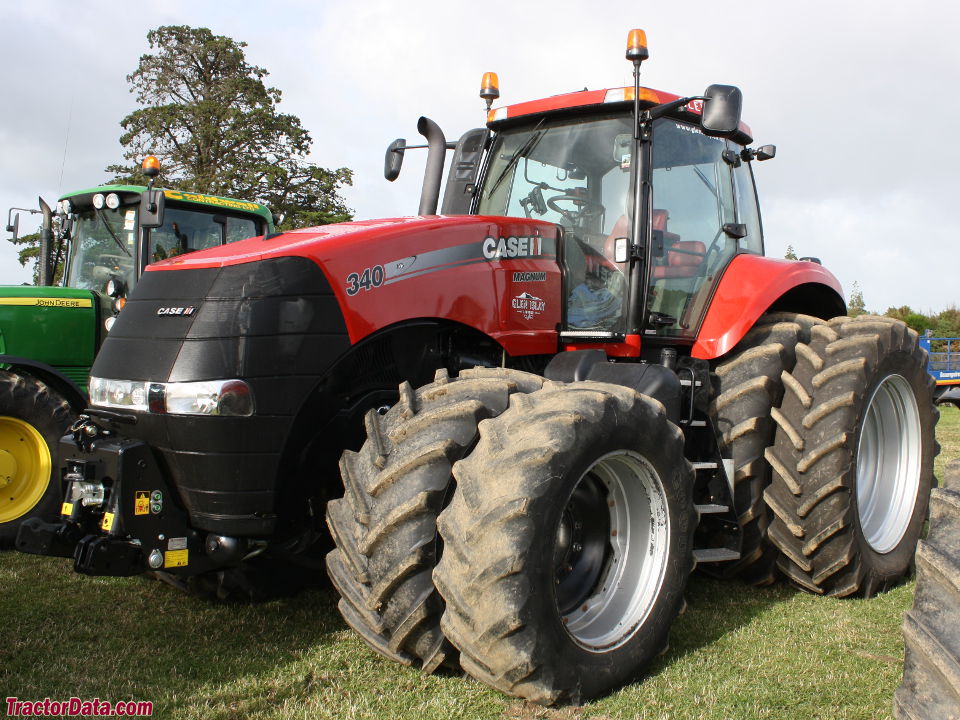

CaseIH Magnum 340 tractor photo
2011 - 2022
Model year
Magnum Series
Row-Crop tractor
Magnum 335
Series:Magnum 315Magnum 340Magnum 370
Production
Manufacturer:CaseIH
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
CaseIH Magnum 340 Power
Engine (gross):340 hp
253.5 kW
Engine (max):374 hp
278.9 kW
PTO (claimed):290 hp
216.3 kW
Drawbar (tested):256.51 hp
191.3 kW
PTO (tested):337.37 hp
251.6 kW
power test details ...
CaseIH Magnum 340 Engine
FPT 8.7L 6-cyl diesel
Fuel tank:168 gal
635.9 L
Exhaust fluid (DEF):23.6 gal
89.3 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:hydraulic wet disc
Cab:Magnum Surveyor cab standard. Optional cab suspension.
Transmissions:19-speed full power shift
 18-speed full power shift
 23-speed creeper
 continuously variable transmission
Transmission details ...
Hydraulics
Type:pressure-flow compensating
Rear valves:4 to 6
Total flow:44 gpm
166.5 lpm
 59 gpm
223.3 lpm (optional)
 75 gpm
283.9 lpm (optional)
Tractor hitch
Rear Type:4/3
Rear lift:17,400 lbs
7892 kg (109cm links)
 19,400 lbs
8799 kg (96cm links)
Front Hitch:optional
Front lift:9,426 lbs
4275 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000 (1-3/4)
 540/1000 (1-3/8)
Front PTO:optional
Front RPM:1000 (1-3/8)
Dimensions & Tires
Wheelbase:120 inches
304 cm
Weight:28,230 lbs
12805 kg
Full dimensions and tires ...
Magnum 340 Serial Numbers
Location:Serial number plate on the right side of the tractor frame, above the front axle.
photo of Magnum 340 serial number

Electrical
Ground:negative
Charging system:alternator
Charging amps:200
Batteries:2
Battery volts:12
