CaseIH Magnum 370

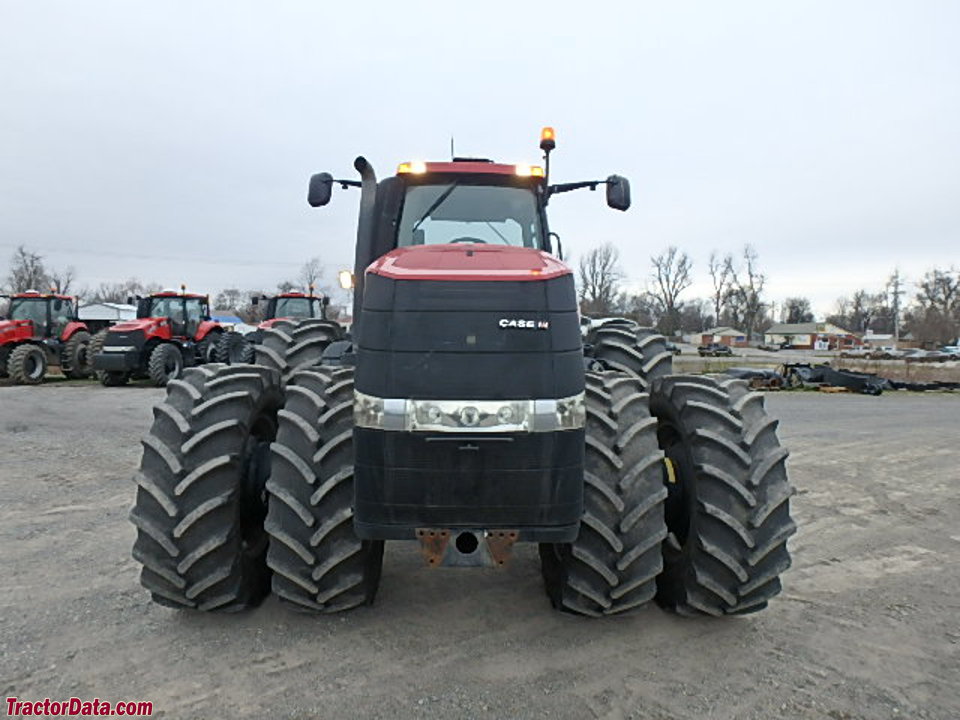

CaseIH Magnum 370 tractor photo
2012 - 2013
Magnum Series
Row-Crop tractor
Series:Magnum 340Magnum 370
Magnum 380
Production
Manufacturer:CaseIH
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
CaseIH Magnum 370 Power
Engine (gross):367 hp
273.7 kW
Engine (max):419 hp
312.4 kW
PTO (claimed):305 hp
227.4 kW
CaseIH Magnum 370 Engine
FPT 8.7L 6-cyl diesel
Fuel tank:152 gal
575.3 L
Exhaust fluid (DEF):23.6 gal
89.3 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:inboard planetary
Steering:power
Cab:Cab standard with air-conditioning.
Transmission:continuously variable transmission
Transmission details ...
Hydraulics
Type:variable displacement pressure flow compensating (PFC)
Valves:4 to 6
Pump flow:44 gpm
166.5 lpm
 59 gpm
223.3 lpm (optional)
 75 gpm
283.9 lpm (optional)
Tractor hitch
Rear Type:IVN/III
 III (optional)
Control:electronic lower link draft sensning
Rear lift (at 24"/610mm):17500 lbs
7938 kg
 14375 lbs
6520 kg (optional)
Rear Arms:adjustable quick coupler
Drawbar:Cat. 4
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000
Dimensions & Tires
Wheelbase:124 inches
314 cm
Weight:31190 lbs
14147 kg
Front tire:420/85R34
Rear tire:480/80R50 (duals)
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:200
Batteries:2
Battery volts:12
