Tractors > CaseIH > Magnum 340

CaseIH Magnum 340 Tests



CaseIH Magnum 340 tractor photo
2011 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 315
Magnum 340
Magnum 370
312.0hp
340.0hp
367.0hp
OCED Tractor Test 2006

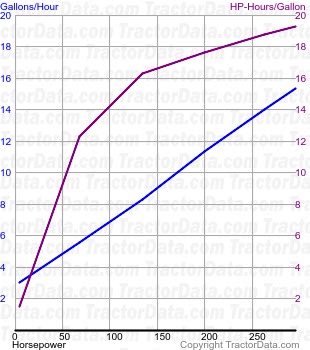

Magnum 340 fuel use from test 789
OCED Tractor Test 2006
Diesel 18-speed 4WD
October 20 - 27, 2011
Link: OCED Tractor Test 2006 file
PTO performance
Max power337.37 hp
251.6 kW
Fuel use16.8 gal/hour
63.6 l/hour
Power at rated engine speed295.02 hp
220.0 kW
Fuel use15.3 gal/hour
57.9 l/hour
Power at rated PTO speed331.45 hp
247.2 kW
Fuel use17.2 gal/hour
65.1 l/hour
Drawbar performance
Max power256.51 hp
191.3 kW
Fuel use15.4 gal/hour
58.3 l/hour
Gear 8 used for power test.
Max pull37,317 lbs
16926 kg
Gear 3 used for pull test.
