CaseIH MXU115 Tests

CaseIH MXU115 tractor photo
2005 - 2006
MXU Maxxum Series
Utility tractor
OCED Tractor Test 2228

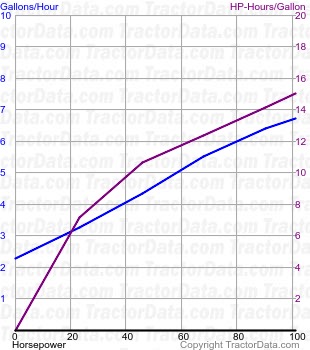

MXU115 fuel use from test 544
OCED Tractor Test 2228
Diesel 24-speed 4WD
September 2004 - November 2004,
Link: OCED Tractor Test 2228 file
PTO performance
Max power:104.7 hp
78.1 kW
Fuel use:6.4 gal/hour
24.2 l/hour
Power at rated engine speed:101.0 hp
75.3 kW
Fuel use:6.7 gal/hour
25.4 l/hour
Power at rated PTO speed:103.7 hp
77.3 kW
Fuel use:6.7 gal/hour
25.4 l/hour
Drawbar performance
Max power:93.4 hp
69.6 kW
Fuel use:7.5 gal/hour
28.4 l/hour
Gear 12 used for power test.
Max pull:12,365 lbs
5608 kg
Gear 1-I-Low used for pull test.
