Kubota BX2350

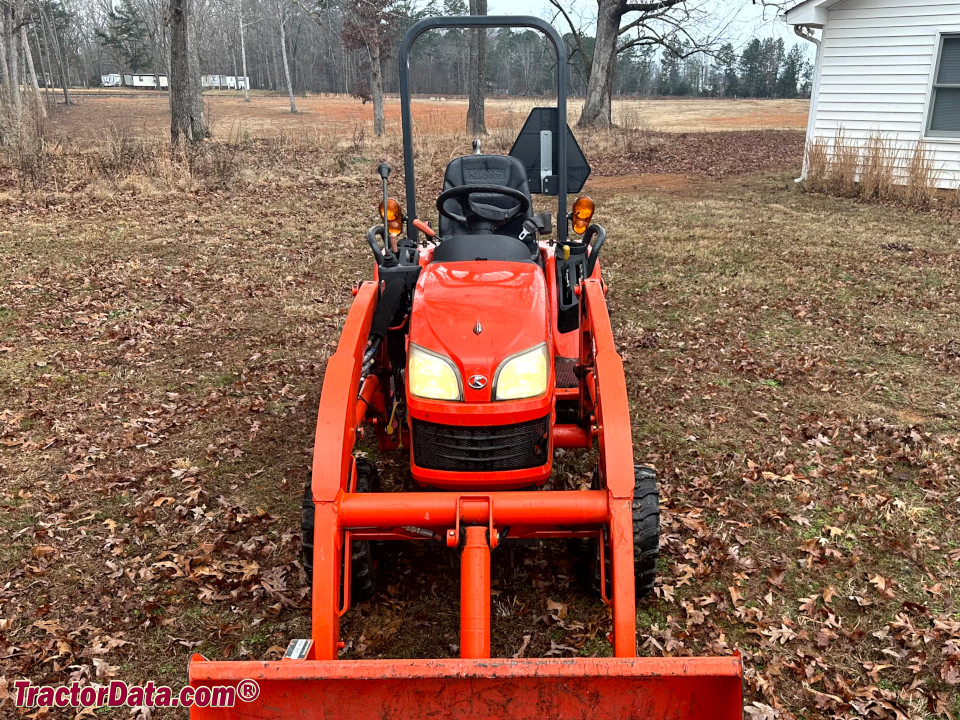

Kubota BX2350 tractor photo
2006 - 2008
BX50 Series
Compact Utility tractor
Series map:
BX1850
BX2350
18.0hp
23.0hp
Production
ManufacturerKubota
Compact Utility tractor
Original price was $9,817 in 2009
Variants
BX2350compact tractor
BX24backhoe
Kubota BX2350 Engine
Kubota 0.9L 3-cyl diesel
Engine details ...
Kubota BX2350 Power
Engine (gross)23 hp
17.2 kW
PTO (claimed)17.7 hp
13.2 kW
Mechanical
Four-wheel drive
Differential lockmechanical rear
Power steering
Wet disc brakes
Two-post fixed ROPS. Optional canopy.
Capacity
Fuel6.6 gal
25.0 L
Hydraulic system3.1 gal
11.7 L
Hydraulics
Typeopen center
Capacity3.1 gal
11.7 L
Total flow6.2 gpm
23.5 lpm
Tractor hitch
Rear TypeI
Rear lift (at ends)1210 lbs
548 kg
Rear lift (at 24"/610mm)680 lbs
308 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Engine RPM540@3142
Mid PTOindependent
Mid PTO Type2500
Engine RPM2500@3043
Dimensions & Tires
Wheelbase55.1 inches
139 cm
Weight1322 lbs
599 kg
Front tire18x8.5-10
Rear tire26x12-12
Full dimensions and tires ...
Kubota BX2350 attachments
48" mid-mount mower deck
54" mid-mount mower deck
60" mid-mount mower deck
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps40
Battery CCA535
Battery volts12
References

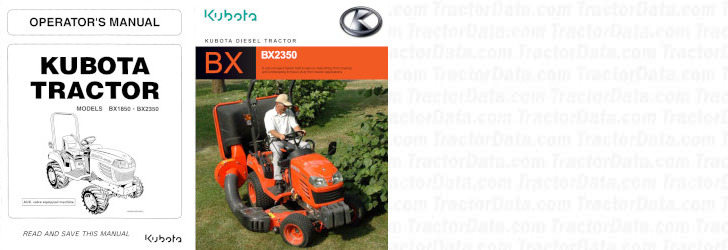

BX2350 references literature
BX Diesel Tractor published in 2006, by Kubota
Operator's Manual BX1850 - BX2350 (K2581-7121-2) published in 2005
BX2350 Diesel Tractor published in 2006, by Kubota
