Kubota BX2230
| | 2004 - 2006 |
| BX30 Series | | Sub-Compact Utility tractor |
|
Series map:
BX1830
BX2230
18.0hp
22.0hp
| Production |
| Manufacturer | Kubota
|
| Sub-Compact Utility tractor |
| Kubota BX2230 Power |
| Engine (gross) | 22 hp
16.4 kW
|
| PTO (claimed) | 16.7 hp
12.5 kW
|
| Mechanical |
| Four-wheel drive |
| Power steering |
| Wet disc brakes |
| Two-post ROPS. Optional BX6730 hard-side weather cab with heater. |
| Hydraulics |
| Pump flow | 5.5 gpm
20.8 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift | 680 lbs
308 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | manual hydraulic disc
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@3068
|
| Mid PTO | independent
|
| Mid PTO Type | 2500
|
| Engine RPM | 2500@3125
|

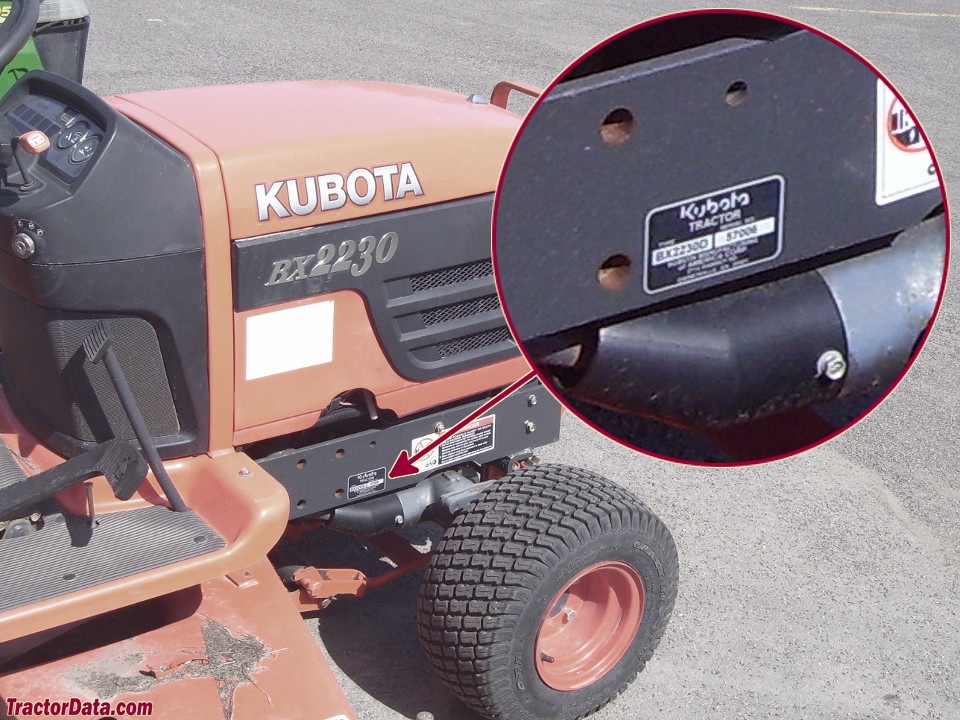

| BX2230 Serial Number Location |
 |
| Serial number decal on the right side of the tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
| Battery Group | 26R
|
