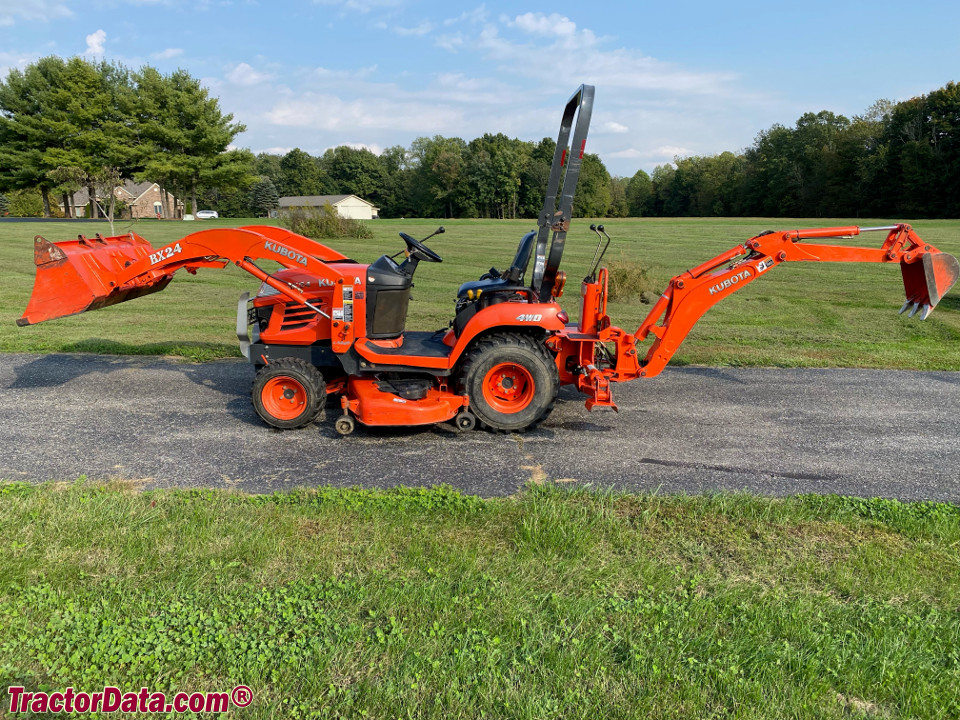

Kubota BX24
| | 2006 - 2009 |
| BX50 Series | | Backhoe loader tractor |
|
| Production |
| Manufacturer | Kubota
|
| Type | Backhoe loader tractor
|
| Kubota BX24 Power |
| Engine (gross) | 23 hp
17.2 kW
|
| PTO (claimed) | 17.7 hp
13.2 kW
|
| Mechanical |
| Chassis | 4x4 MFWD 4WD
|
| Differential lock | standard
|
| Steering | power
|
| Brakes | wet disc
|
| Cab | Two-post ROPS.
|
| Hydraulics |
| Type | open center
|
| Total flow | 6.3 gpm
23.8 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift (at ends) | 992 lbs
449 kg
|
| Rear lift (at 24"/610mm) | 661 lbs
299 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear RPM | 540
|
| Engine RPM | 540@3068
|
| Mid PTO | independent
|
| Mid RPM | 2500
|
| Engine RPM | 2500@3125
|
| BX24 Serial Location |
 |

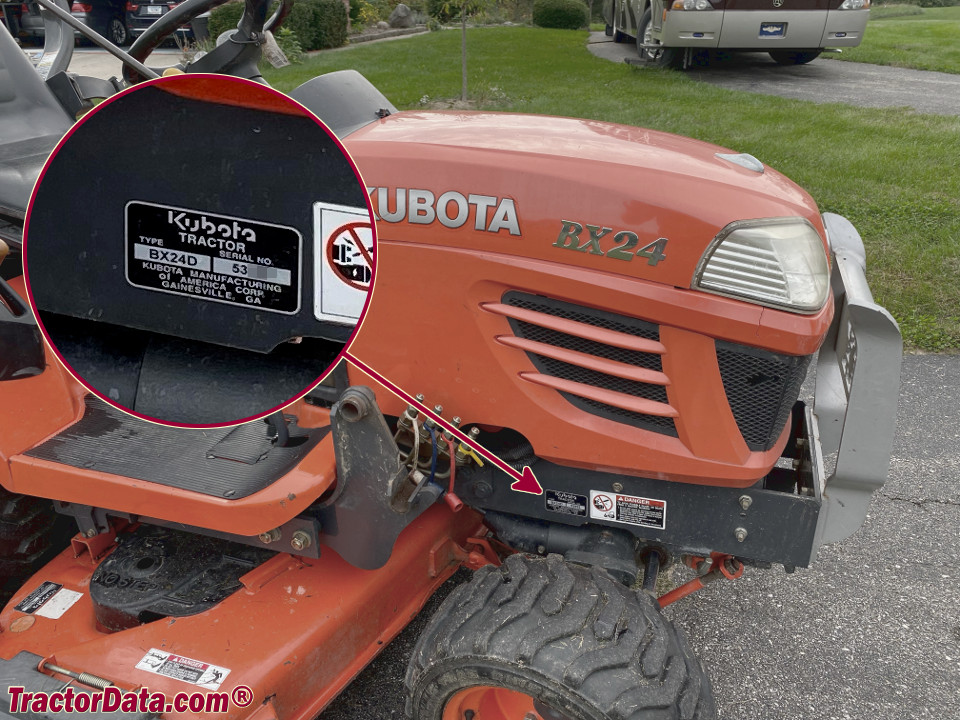

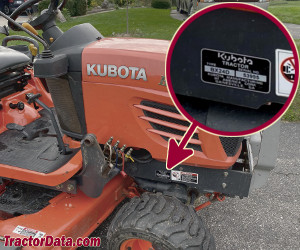

| Serial number plate on the right side of the BX24 frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| Page information |
| Contact: Peter Easterlund |
| Updated on December 29, 2021 |
| Copyright 2021 TractorData LLC |
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
