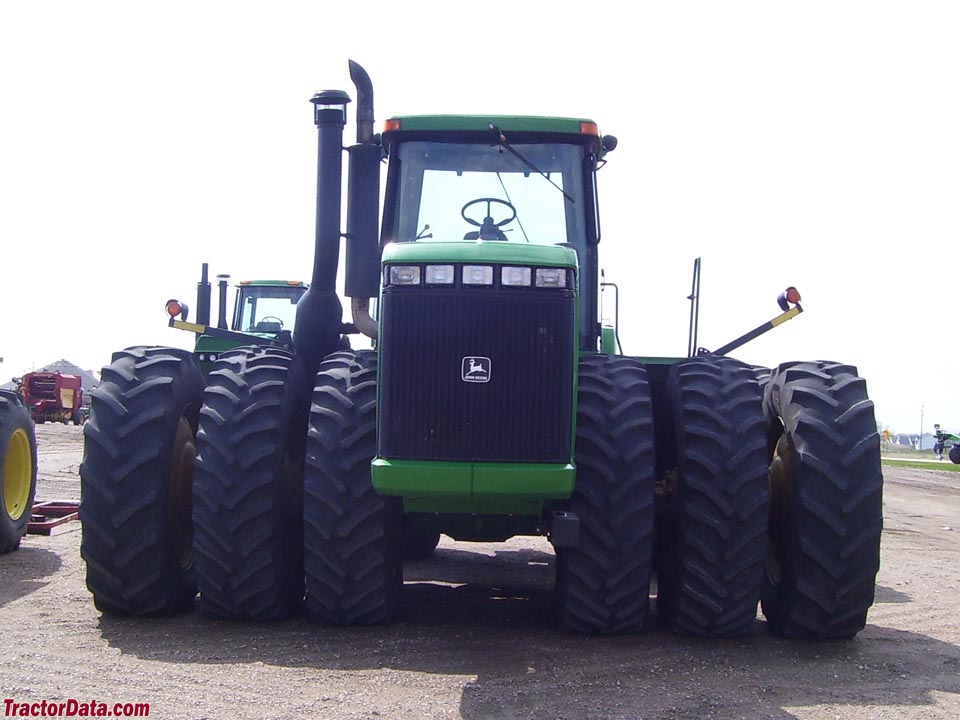

John Deere 9400
| 1997 - 2001 |
9000 Series | Four-wheel Drive (4WD) tractor |
|
Series map:
9300
9400
360.0hp
425.0hp
Production |
Manufacturer | John Deere
|
Four-wheel Drive (4WD) tractor |
Built in Waterloo, Iowa, USA |
Original price was $121,000 in 2001 |
John Deere 9400 Power |
Engine | 425 hp 316.9 kW
|
PTO (claimed) | 302 hp 225.2 kW
|
Drawbar (tested) | 345.00 hp 257.3 kW
|
PTO (tested) | 312.25 hp 232.8 kW
|
Performance test details ... |
Mechanical |
Four-wheel drive |
Steering | hydrostatic power
|
Hydraulic wet disc brakes |
Cab standard. |
Capacity |
Fuel | 256 gal 969.0 L
|
Hydraulic system | 26 gal 98.4 L
|
Hydraulics |
Type | closed center PFC
|
Capacity | 26 gal 98.4 L
|
Pressure | 2900 psi 200.0 bar
|
Valves | 2 to 5
|
Pump flow | 35 gpm 132.5 lpm
|
Total flow | 44 gpm 166.5 lpm
|
Tractor hitch |
Rear Type | III
|
  | IV/IVN OptOptional
|
Rear lift | 13,871 lbs 6291 kg
|
  | 14,445 lbs*Cat. IV 6552 kg
|
Power Take-off (PTO) |
Rear PTO | independent
|
Rear PTO Type | 1000 OptOptional
|
9400 Serial Number Location |
 |
Serial number plate on the top-left of the tractor's hinge |
Electrical |
Ground | negative
|
Charging system | alternator
|
Charging amps | 140
|
Batteries | 3
|
Battery CCA | 925
|
Battery volts | 12
|
References |
 |
New 9000 Series Tractors published in 1996, by John Deere |
Typical Questions & Answers - 9000 Series 4WD Tractor Engines published in 1996, by John Deere |
The New World Power - 9000 Series Tractors published in 1996, by John Deere |
9000 Series Tractors Product Information Handbook published in 1998, by John Deere |
9000/9000T Series Tractors Product Information Handbook published in 1999, by John Deere |
