John Deere 9400 Transmission


John Deere 9400 tractor photo
1997 - 2001
9000 Series
Four-wheel Drive (4WD) tractor
Series:93009400
9420
Transmissions overview
12-speed partially synchronized
24-speed partial power shift
12-speed full power shift
Transmission
Transmission:John Deere Syncro
Type:partially synchronized
Gears:12 forward and 3 reverse
Oil capacity:147.2 qts
139.3 L (100mm axle)
 151.6 qts
143.5 L (110mm axle)
 151.2 qts
143.1 L (PTO 100mm axle)
 155.6 qts
147.3 L (PTO 110mm axle)
 140 qts
132.5 L (SN030001+)
Three speeds (1-3 and reverse) in four ranges (A-D). Synchronized shifting between speeds using the clutch. Tractor must be stopped, and clutch used, to shift ranges. Reverse is not available in the highest (D) range.
Speeds
With 710/70R38 tires.
9400 Syncro partially synchronized speeds
Transmission
Transmission:John Deere PowrSync
Type:partial power shift
Gears:24 forward and 6 reverse
Oil capacity:147.2 qts
139.3 L (100mm axle)
 151.6 qts
143.5 L (110mm axle)
 151.2 qts
143.1 L (PTO 100mm axle)
 155.6 qts
147.3 L (PTO 110mm axle)
 140 qts
132.5 L (SN030001+)
Three speeds (1, 2, 3 and reverse) in four ranges (A-D) plus high-low power shift. Speeds and ranges may be shifted on the move, using the clutch. High-low power shift for each speed using lever.

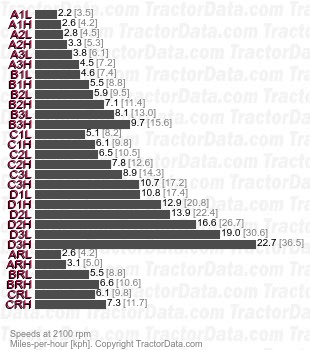

Speeds
With 710/70R38 tires.
9400 PowrSync partial power shift speeds
Transmission
Transmission:John Deere PowerShift
Type:full power shift
Gears:12 forward and 2 reverse
Oil capacity:64 qts
60.6 L (early)
 56 qts
53.0 L (SN030001+)
 60 qts
56.8 L (no PTO early)
 54 qts
51.1 L (no PTO late)
 120 qts
113.6 L (axles early)
 108 qts
102.2 L (axles SN030001+)

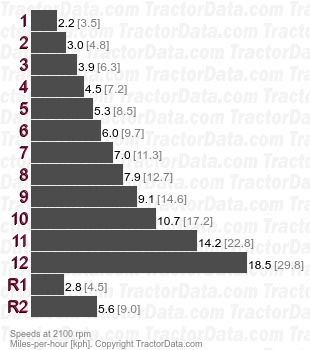

Speeds
With 710/70R38 tires.
9400 PowerShift full power shift speeds
