Tractors > John Deere > 9400

John Deere 9400 Engine



John Deere 9400 tractor photo
1997 - 2001
9000 Series
Four-wheel Drive (4WD) tractor
Series map:
9300
9400
360.0hp
425.0hp
Engine Detail
John Deere
turbocharged aftercooled diesel
6-cylinder
liquid-cooled inline
Displacement765 ci
12.5 L
Bore/Stroke5.00x6.50 inches
127 x 165 mm
Power425 hp
316.9 kW
Compression16:1
Rated RPM2100
Coolant capacity64 qts
60.6 L
Engine Oil

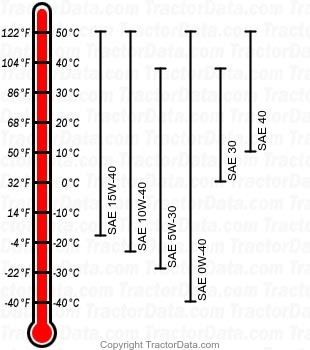

9400 diesel engine oil chart
Oil capacity44 qts
41.6 L
