John Deere 9400 Tests

John Deere 9400 tractor photo
1997 - 2001
9000 Series
Four-wheel Drive (4WD) tractor
OCED Tractor Test 1733

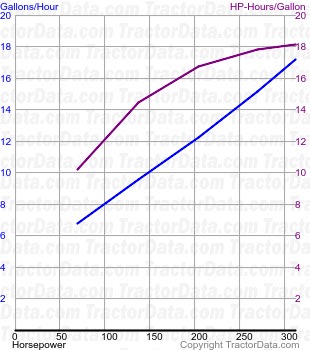

9400 fuel use from test 223
OCED Tractor Test 1733
Diesel 24-speed 4WD
May 2 - June 18, 1997
Link: OCED Tractor Test 1733 file
PTO performance
Power at rated engine speed:312.25 hp
232.8 kW
Fuel use:17.2 gal/hour
65.1 l/hour
Power at rated PTO speed:343.44 hp
256.1 kW
Fuel use:18.0 gal/hour
68.1 l/hour
Drawbar performance
Max power:345.00 hp
257.3 kW
Fuel use:20.3 gal/hour
76.8 l/hour
Max pull:38,409 lbs
17422 kg
