John Deere 8970 Tests

John Deere 8970 tractor photo
1993 - 1996
8070 Series
Four-wheel Drive (4WD) tractor
OCED Tractor Test 1673

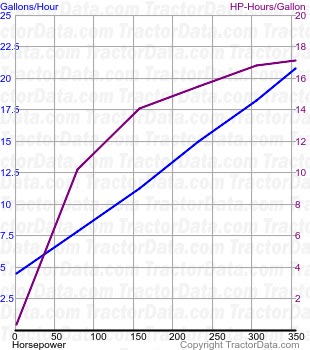

8970 fuel use from test 141
OCED Tractor Test 1673
Diesel PowrSync 4WD
October 26 - December 1, 1993
Link: OCED Tractor Test 1673 file
PTO performance
Power at rated engine speed:354.45 hp
264.3 kW
Fuel use:20.7 gal/hour
78.3 l/hour
Power at rated PTO speed:393.39 hp
293.4 kW
Fuel use:21.5 gal/hour
81.4 l/hour
Drawbar performance
Max power:313.92 hp
234.1 kW
Fuel use:20.1 gal/hour
76.1 l/hour
Max pull:34,302 lbs
15559 kg
