| | 1997 - 2001 |
| 9000 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
9200
9300
9400
310.0hp
360.0hp
425.0hp
| Engine Detail |
| John Deere |
| turbocharged aftercooled diesel |
| 6-cylinder |
| liquid-cooled inline |
| Displacement | 765 ci
12.5 L
|
| Bore/Stroke | 5.00x6.50 inches
127 x 165 mm
|
| Power | 360 hp
268.5 kW
|
| Compression | 16:1
|
| Rated RPM | 2100
|
| Coolant capacity | 64 qts
60.6 L
|

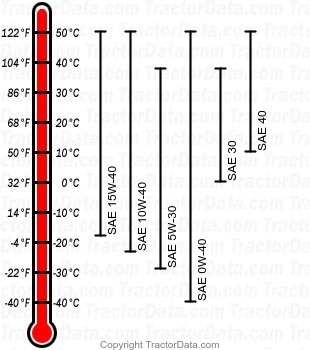

| Engine Oil |
|
| Oil capacity | 44 qts
41.6 L
|

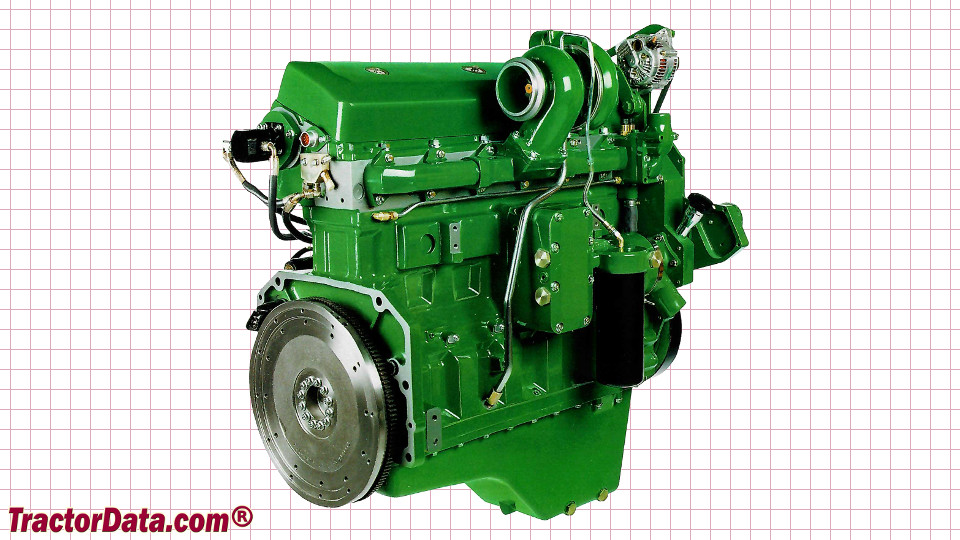

| John Deere 9300 Engine |
 |
