New Holland TM190

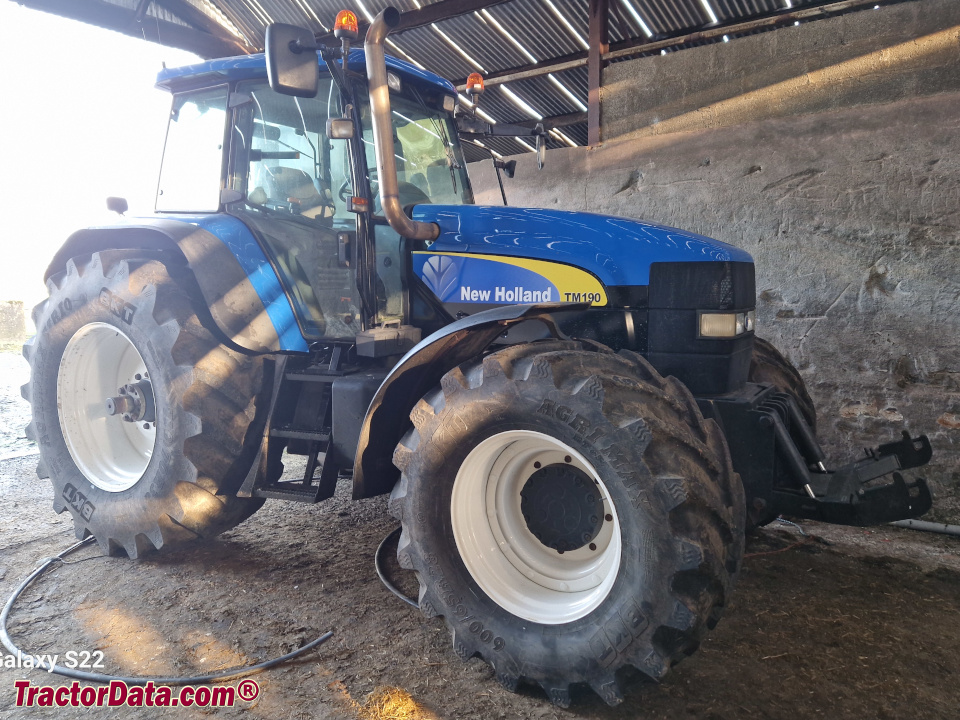

New Holland TM190 tractor photo
2002 - 2007
TM Series
Row-Crop tractor
Series map:
TM175
TM190
175.0hp
190.0hp
Production
ManufacturerNew Holland
Row-Crop tractor
Built in Basildon, England
Variants
MXM190similar CaseIH model
New Holland TM190 Engine
CNH 7.5L 6-cyl diesel
Engine details ...
New Holland TM190 Transmission
19-speed full power shift
Transmission details ...
New Holland TM190 Power
Engine190 hp
141.7 kW
PTO (claimed)160 hp
119.3 kW
Drawbar (tested)137.6 hp
102.6 kW
PTO (tested)172.1 hp
128.3 kW
Performance test details ...
Mechanical
Four-wheel drive
Differential lockelectro-hydraulic
Power steering
Differential hydraulic wet disc brakes
Cab standard with heat and air-conditioning. Optional heated air-ride seat.
Photos
No photos of the New Holland TM190 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel105.1 gal
397.8 L
Hydraulic system26.4 gal
99.9 L
Hydraulics
Typeclosed center load sensing (CCLS)
Capacity26.4 gal
99.9 L
Pressure2750 psi
189.6 bar
Rear valves4
Mid valves2 to 4
Pump flow31.7 gpm
120.0 lpm
Total flow48.7 gpm
184.3 lpm
Steering flow17 gpm
64.3 lpm
Tractor hitch
Rear TypeII/IIIN
Controlelectronic lower-link draft control
Rear lift (at ends)17500 lbs
7938 kg
Front HitchII OptOptional
Front lift7208 lbs
3269 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540/1000
Dimensions & Tires
Wheelbase110.9 inches
281 cm
Weight15360 to 17470 pounds
Front tire14.9R30
Rear tire20.8R42
Full dimensions and tires ...
TM190 Serial Numbers
Location:Serial number decal on the right side of the radiator support column.
Electrical
Groundnegative
Charging systemalternator
Charging amps120
Battery CCA1300
Battery volts12
References
TM190 references literature
95 to 160 PTO hp Tractors published in 2005, by New Holland
Operator's Manual TM Tractors (82999263) published in 2006
Operator's Manual TM Tractors (87014174) published in 2002
