New Holland T7050

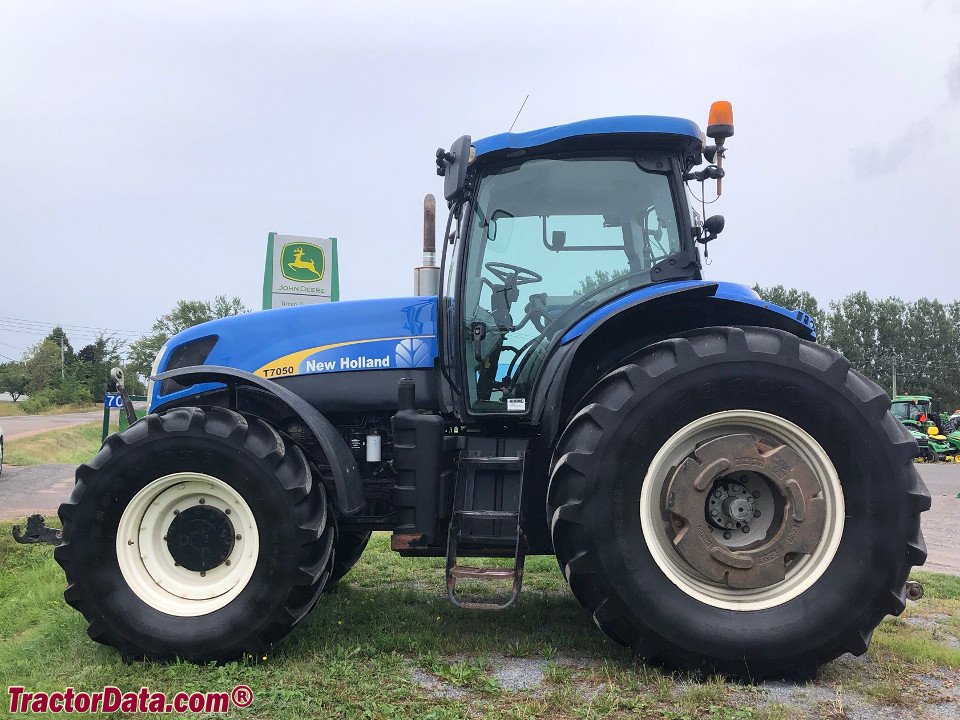

New Holland T7050 tractor photo
2007 - 2011
T7000 Series
Row-Crop tractor
TM190
Series:T7040T7050T7060
T7.250
Production
Manufacturer:New Holland
Type:Row-Crop tractor
Factory:Basildon, England
The New Holland T7050 is available with optional TerraGlide or SuperSteer front axles. The TerraGlide axle provides 4.13 inches of travel to improve traction and ride quality. The SuperSteer axle pivots 19 degrees (in addition to the 46 degrees of wheel pivot) to allow for quicker turning.
New Holland T7050 Power
Engine:195 hp
145.4 kW
PTO (claimed):165 hp
123.0 kW
Drawbar (tested):140.8 hp
105.0 kW
PTO (tested):189.4 hp
141.2 kW
power test details ...
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:electro-hydraulic rear differential lock
Steering:hydrostatic power
Brakes:differential hydraulic wet disc
Trailer brakes:hydraulic optional
Cab:Horizon cab standard with heat and air-conditioning. Optional deluxe cab with air-ride heated seat, automatic temperature control, and heated mirrors.
Transmissions:18-speed full power shift
 19-speed full power shift
 continuously variable transmission (CVT)
 28-speed
Transmission details ...
Photos
No photos of the New Holland T7050 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel:116.2 gal
439.8 L
 107 gal
405.0 L (late)
Hydraulic system:26.5 gal
100.3 L
Hydraulics
Type:closed center load sensing
Capacity:26.5 gal
100.3 L
Rear valves:3 to 5
Pump flow:31.7 gpm
120.0 lpm
 39.6 gpm
149.9 lpm (optional MegaFlow)
Total flow:49 gpm
185.5 lpm
 56.6 gpm
214.2 lpm (optional)
Steering flow:17.6 gpm
66.6 lpm
Tractor hitch
Rear Type:3/2
Control:electronic lower-link draft control
Rear lift (at ends):19,060 lbs
8645 kg
Rear lift (at 24"/610mm):15,873 lbs
7199 kg
Front lift:7,981 lbs
3620 kg
 6,019 lbs
2730 kg (SuperSteer axle)
Power Take-off (PTO)
Rear PTO:independent electro-hydraulic
Clutch:electro-hydraulic wet disc
Rear RPM:540/1000
 540E/1000
 1000 (1.75)
Dimensions & Tires
Wheelbase:113.5 inches
288 cm
 117.2 inches
297 cm (SuperSteer axle)
Weight:15708 to 17635 pounds
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:150
Battery CCA:1300
Battery volts:12
