| | 2002 - 2007 |
| TM Series | | Row-Crop tractor |
|
Series map:
TM175
TM190
175.0hp
190.0hp
| Transmission |
| Transmission | Power Command
|
| Type | full power shift
|
| Gears | 19 forward and 6 reverse
|
| Clutch | electro-hydraulic wet disc
|
| Push-button power shift with power shuttle. Available in 30 KPH (18-speed) and 40 KPH (19-speed versions). Optional creeper range provides an addition 10 forward and 6 reverse gears. |

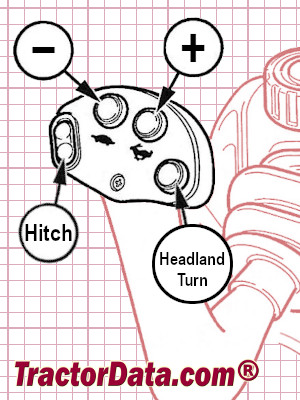

| Shift Pattern |
 |
