New Holland TS110
|
|
| Production | |
| Manufacturer | New Holland |
| Built in Basildon, England | |
| New Holland TS110 Engine | |
| New Holland 5.0L 4-cyl diesel | |
| Fuel tank | 34 gal 128.7 L |
| 42 galOptOptional 159.0 L | |
 Engine details ... | |
| New Holland TS110 Transmissions | |
| 8-speed unsynchronized gear | |
| 16-speed two-speed power shift | |
| 12-speed | |
| 24-speed | |
| 16-speed four-speed power shift | |
 Transmission details ... |
| New Holland TS110 Power | |
| Engine | 110 hp 82.0 kW |
| PTO (claimed) | 90 hp 67.1 kW |
| Drawbar (tested) | 82.7 hp 61.7 kW |
| PTO (tested) | 98.4 hp 73.4 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | planetary |
| Differential lock | mechanical rear |
| electro-hydraulic front and rear OptOptional | |
| Power steering | |
| Hydraulic wet disc brakes | |
| Trailer brakes | hydraulic OptOptional |
| Two-post folding ROPS. Cab optional with air-conditioning. | |

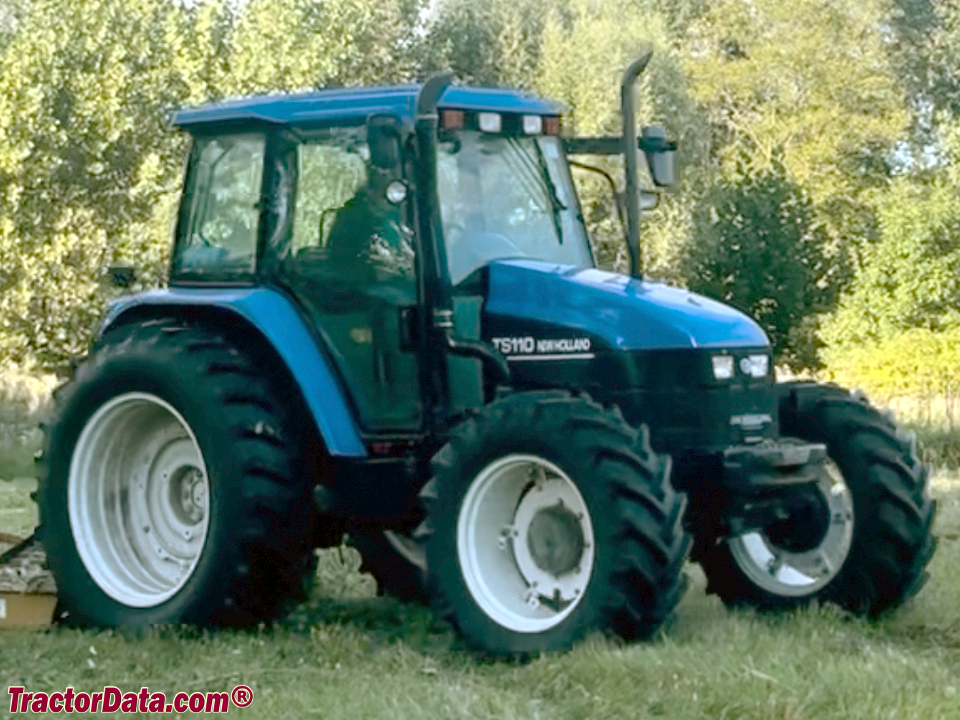

| Photos | |
 | |
 New Holland TS110 photos... | |
| Hydraulics | |
| Type | open center |
| closed center OptOptional | |
| Pressure | 2500 psi 172.4 bar |
| 2700 psi (open center) 186.2 bar | |
| Valves | 2 to 4 |
| Pump flow | 9.3 gpm 35.2 lpm |
| 17.4 gpm (optional pump) 65.9 lpm | |
| 20 gpm (closed center) 75.7 lpm | |
| Steering flow | 9.1 gpm 34.4 lpm |
| Steering press. | 2100 psi (2WD) 144.8 bar |
| 2500 psi (4WD) 172.4 bar | |
| Tractor hitch | |
| Rear Type | II |
| Rear lift (at 24"/610mm) | 4200 lbs 1905 kg |
| 6210 lbs (assist ram) 2816 kg | |
| 8240 lbs (two assist rams) 3737 kg | |
| 8598 lbs (two rams, Elec draft control) 3900 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.375) |
| Engine RPM | 540@1900 |
| 1000@2050 (non-shiftable) | |
| 1000@2060 (shiftable) | |
| Dimensions & Tires | |
| 2WD Wheelbase | 92.1 inches 233 cm |
| 4WD Wheelbase | 93 inches 236 cm |
| Weight | 7308 to 10119 pounds |
| Front tire | 14.9-28 |
| 4WD Rear tire | 18.4-38 |
 Full dimensions and tires ... | |
| TS110 Serial Numbers | |
| Location: | Serial number decal inside the hood on the right side of the tractor. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| ROPS Charging amps | 55 |
| Cab Charging amps | 100 |
| Batteries | 1 |
| 2 *Second battery optional with cabin. | |
| Battery CCA | 800 |
| Battery volts | 12 |
| References | |
 | |
| TS Tractors 70 to 90 PTO hp published in 1998, by New Holland | |
| TS Tractors 70 to 90 hp published in 2000, by New Holland | |
| Series TS published in 2000, by New Holland | |
| TS Models TS 90, TS 110 & TS 120 published by New Holland | |
| North American Buyer's Guide published in 1997, by New Holland | |
 | |
| Operator's Manual TS90 - TS100 - TS110: EconoShift (86562958) published in 1998 | |
| Operator's Manual TS90 - TS100 - TS110: Synchro Command and ElectroShift (86562959) published in 1998 | |
| TS90 TS100 TS110 TS115 Operator's Manual (86630281) published in 2001 | |
| TS90 TS100 TS110 Repair Manual (86572173) published in 1998 |
