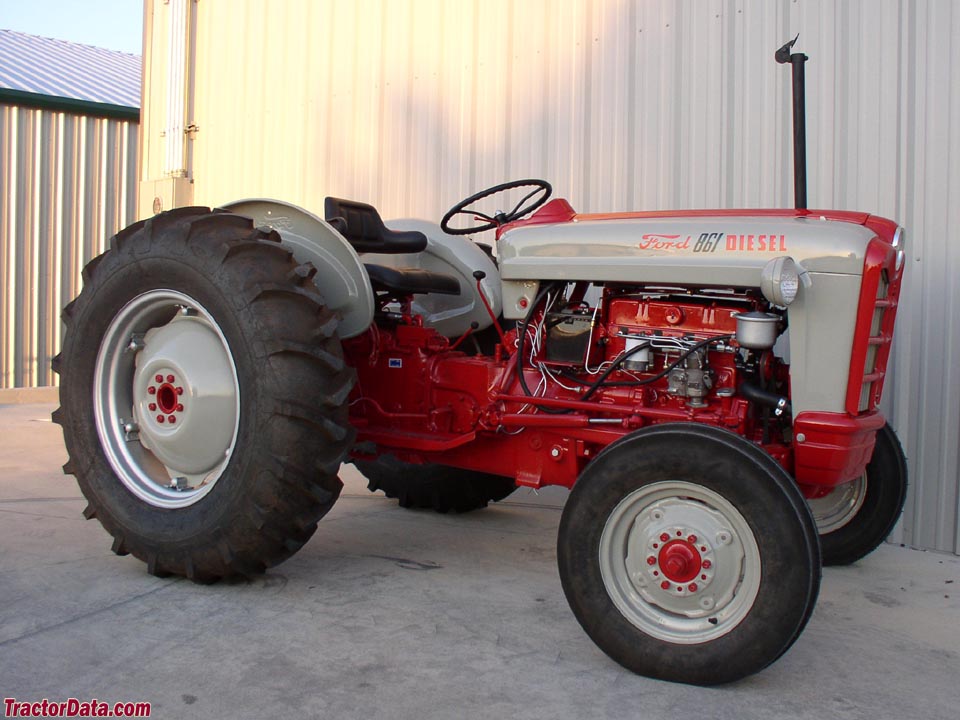

Ford 861 Powermaster
| | 1958 - 1962 |
| 801 Powermaster Series | | Utility tractor |
|
| Production |
| Manufacturer | Ford
|
| Utility tractor |
| Built in Highland Park, Michigan, USA |
| The Ford 861 was one of the models in the "801 Powermaster" series. |
| Variants |
| 961 | row-crop chassis
|
| 811 | Select-O-Speed, no PTO
|
| 821 | Four-speed, no PTO or 3-point
|
| 841 | Four-speed
|
| 851 | Five-speed
|
| 861 | Five speed, live PTO
|
| 871 | Select-O-Speed
|
| 881 | Select-O-Speed, dual-speed PTO
|
| Ford 861 Power |
| Engine (gross) | 62.6 hp
46.7 kW
|
| Engine | 56.3 hp
42.0 kW
|
| Drawbar (claimed) | 44 hp
32.8 kW
|
| Belt (claimed) | 50 hp
37.3 kW
|
| Plows | 3 *14-inch
|
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| | power assist optional
|
| Differential mechanical expanding shoe brakes |
| Open operator station. |
| Capacity |
| Fuel | 17 gal
64.3 L
|
| Hydraulic system | 2 gal
7.6 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 2 gal
7.6 L
|
| Pressure | 2000 psi
137.9 bar
|
| Total flow | 4 gpm
15.1 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift | 1,250 lbs
567 kg
|
| Power Take-off (PTO) |
| Rear PTO | live
|
| Rear RPM | 540
|
| 861 Serial Location |
 |
| Left side of tractor, on top of transmission case behind the starter. |
| Electrical |
| Ground | positive (6V)
|
| | negative (12V)
|
| Charging system | generator
|
| Charging amps | 20
|
| Battery volts | 6 (gas/lp)
|
| | 12 (diesel)
|
| Battery AH | 80 (6V)
|
| | 135 (12V)
|
| References |
 |
| Tractors For Industrial Use published in 1958, by Ford |
| 1955-1960 Tractor Shop Manual (SE-8175) published in 1961 |
| Diesel Tractors published in 1959, by Ford |
| New Diesel Tractors published in 1958, by Ford |
| New Ford 801 Series Powermaster Tractors published in 1957 |
| Ford Powermaster Tractors published in 1958 |
| Ford Powermaster Tractors published in 1959 |
