Ford 861 Powermaster Engine


Ford 861 Powermaster tractor photo
1958 - 1962
801 Powermaster Series
Utility tractor
Series map:
861
62.6hp
Engine options
Ford 2.8L 4-cyl gasoline
Ford 2.8L 4-cyl LP gas
Ford 2.8L 4-cyl diesel
Engine Detail
Ford EAF
gasoline
4-cylinder 8-valve
liquid-cooled vertical overhead valve
Displacement172 ci
2.8 L
Bore/Stroke3.90x3.60 inches
99 x 91 mm
Power (gross)62.6 hp
46.7 kW
Air cleaneroil bath
Compression7.5:1
Rated RPM2000
Torque166 lb-ft
225.1 Nm
Torque RPM1600
Firing order1-2-4-3
Starter volts6
Coolant capacity15 qts
14.2 L
Sparkplug gap0.027 inches
0.686 mm
Point gap0.025 inches
0.635 mm
Intake valve clearance0.015 inches (hot)
0.381 mm
Exhaust valve clearance0.015 inches (hot)
0.381 mm
Engine Oil

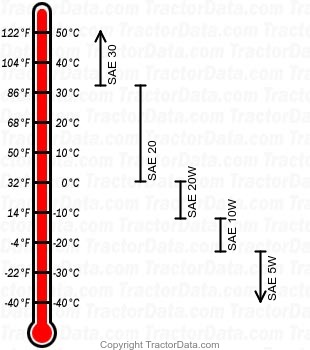

861 Powermaster gasoline engine oil chart
Oil capacity5 qts
4.7 L
Oil change100 h
Ford 861 Engine

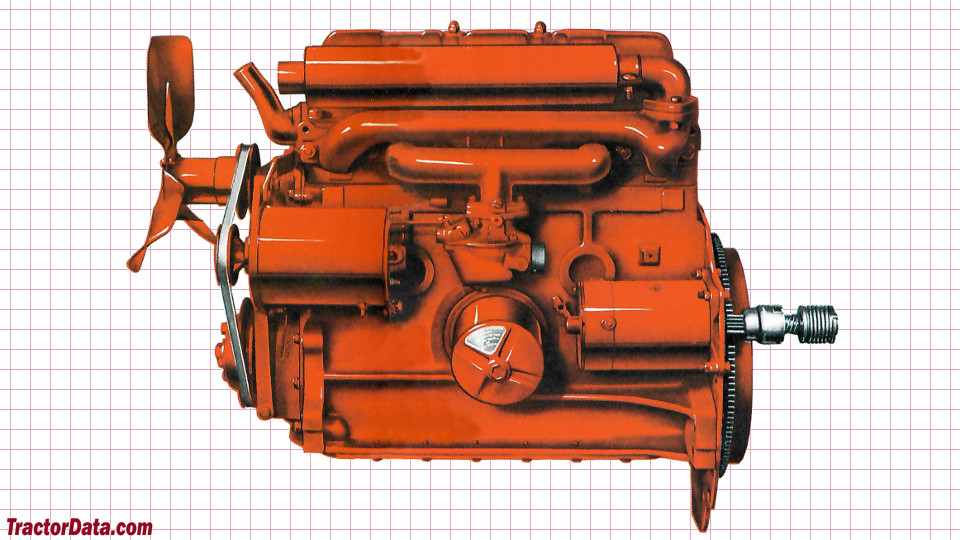

Ford 861 engine image
Engine Detail
Ford EAF
LP gas
4-cylinder 8-valve
liquid-cooled
Displacement172 ci
2.8 L
Bore/Stroke3.90x3.60 inches
99 x 91 mm
Air cleaneroil bath
Compression8.65:1
Rated RPM2200
Firing order1-2-4-3
Starter volts6
Sparkplug gap0.027 inches
0.686 mm
Point gap0.025 inches
0.635 mm
Intake valve clearance0.015 inches (hot)
0.381 mm
Exhaust valve clearance0.015 inches (hot)
0.381 mm
Engine Detail
Ford
diesel
4-cylinder 8-valve
liquid-cooled
Displacement172 ci
2.8 L
Bore/Stroke3.90x3.60 inches
99 x 91 mm
Power56.3 hp
42.0 kW
Air cleaneroil bath
Compression16.8:1
Rated RPM2200
Torque140.4 lb-ft
190.4 Nm
Torque RPM1400
Firing order1-2-4-3
Starter volts12
Engine Oil
861 Powermaster diesel engine oil chart
Oil capacity5 qts
4.7 L
