Tractors > Ford > Powermaster 811

Ford Powermaster 811



Ford Powermaster 811 tractor photo
1958 - 1962
801 Powermaster Series
Utility tractor
Production
ManufacturerFord
Utility tractor
Built in Highland Park, Michigan, USA
The Ford 811 was one of two "special utility" models in the 801 Powermaster series. The 811 had the Select-O-Speed transmission but no PTO.
Variants
811Select-O-Speed, no PTO
821Four-speed, no PTO or 3-point
841Four-speed
851Five-speed
861Five speed, live PTO
871Select-O-Speed
881Select-O-Speed, dual-speed PTO
Ford 811 Engines
Ford 2.8L 4-cyl gasoline
Ford 2.8L 4-cyl LP gas
Ford 2.8L 4-cyl diesel
Engine details ...
Ford 811 Transmission
10-speed full power shift
Transmission details ...
Ford 811 Power
Engine62.6 hp
46.7 kW
Belt (claimed)40 hp
29.8 kW
Plows3 (14-inch)
Mechanical
Two-wheel drive
Steeringmanual
 power assist optional
Differential mechanical expanding shoe brakes
Open operator station.
Photos
No photos of the Ford 811 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel17 gal
64.3 L
Hydraulic system2 gal
7.6 L
Hydraulics
Typeopen center
Capacity2 gal
7.6 L
Pressure2000 psi
137.9 bar
Total flow4 gpm
15.1 lpm
Tractor hitch
Rear TypeI
Rear lift1250 lbs
567 kg
Dimensions & Tires
Wheelbase74.5 inches
189 cm
Weight3,500 lbs
1587 kg
Front tire6.00x16
Rear tire10x28
Full dimensions and tires ...
811 Serial Numbers
Location:Left side of tractor, on top of transmission case behind the starter.
19571001
195811977
195958312
1960105943
1961131427
1962155531

FAQ: How to read a serial number table.
Electrical
Groundpostitive (6V)
 negative (12V)
Charging systemgenerator
Charging amps20
Battery volts6 (gas/lp)
 12 (diesel)
Battery AH80 (6V)
 135 (12V)
References

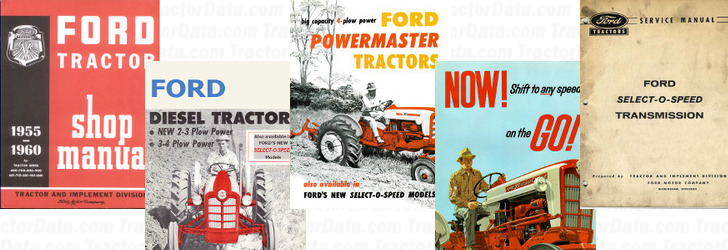

Powermaster 811 references literature
1955-1960 Tractor Shop Manual (SE-8175) published in 1961
Diesel Tractors published in 1959, by Ford
Ford Powermaster Tractors published in 1959
Now! Shift to any speed on the Go! published in 1959, by Ford
Service Manual Select-O-Speed Transmission (SE 6978) published in 1959
