Tractors > Ford > 841 Powermaster

Ford 841 Powermaster

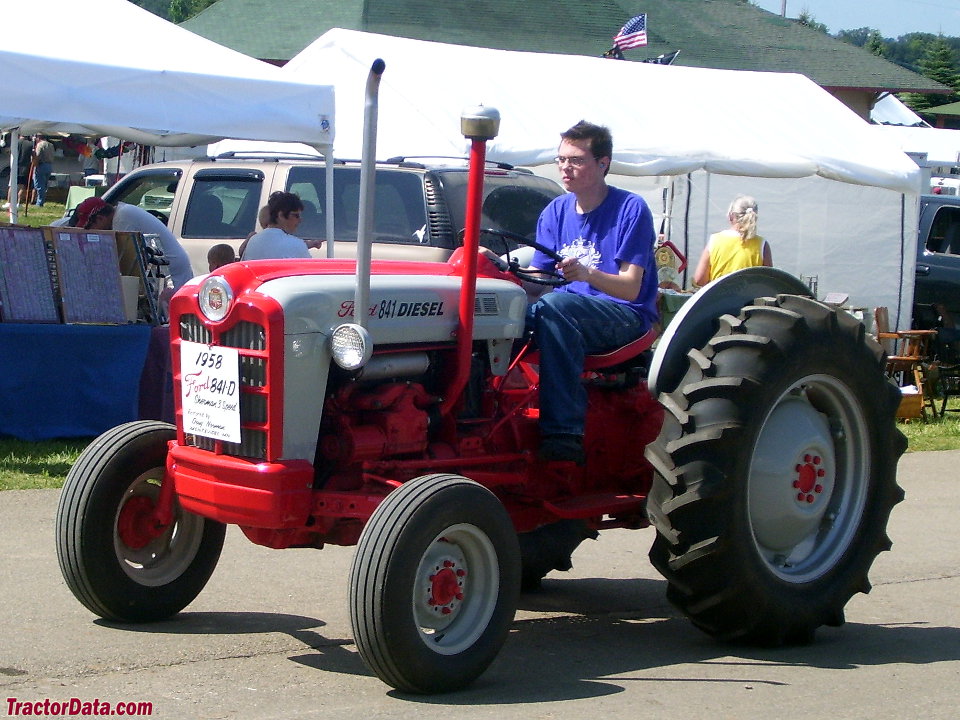

Ford 841 Powermaster tractor photo
1957 - 1961
801 Powermaster Series
Utility tractor
Series map:
841
62.6hp
Production
ManufacturerFord
Utility tractor
Built in Highland Park, Michigan, USA
Original price was $3,080 in 1957
Variants
941row-crop chassis
811Select-O-Speed, no PTO
821Four-speed, no PTO or 3-point
841Four-speed
851Five-speed
861Five speed, live PTO
871Select-O-Speed
881Select-O-Speed, dual-speed PTO
Ford 841 Engines
Ford 2.8L 4-cyl gasoline
Ford 2.8L 4-cyl LP gas
Ford 2.8L 4-cyl diesel
Engine details ...
Ford 841 Transmissions
4-speed unsynchronized gear
12-speed
Transmission details ...
Ford 841 Power
Engine (gross)62.6 hp
46.7 kW
Engine56.3 hp
42.0 kW
Drawbar (claimed)44 hp
32.8 kW
Belt (claimed)50 hp
37.3 kW
Plows3 *14-inch
Drawbar (tested)41.44 hp
30.9 kW
Belt (tested)44.71 hp
33.3 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringmanual
 power assist optional
Differential mechanical expanding shoe brakes
Open operator station.
Photos
Ford 841 Powermaster, left side
Ford 841 photos...
Capacity
Fuel17 gal
64.3 L
Hydraulic system2 gal
7.6 L
Hydraulics
Typeopen center
Capacity2 gal
7.6 L
Pressure2000 psi
137.9 bar
Total flow4 gpm
15.1 lpm
Tractor hitch
Rear TypeI
Rear lift1250 lbs
567 kg
Power Take-off (PTO)
Rear PTOtransmission
Rear PTO Type540
Dimensions & Tires
Wheelbase74.5 inches
189 cm
Weight2958 to 3487 pounds
Front tire6.00-16
Rear tire12-28
Full dimensions and tires ...
Ford 841 attachments
front-end loader
Attachment details ...
841 Serial Number Location

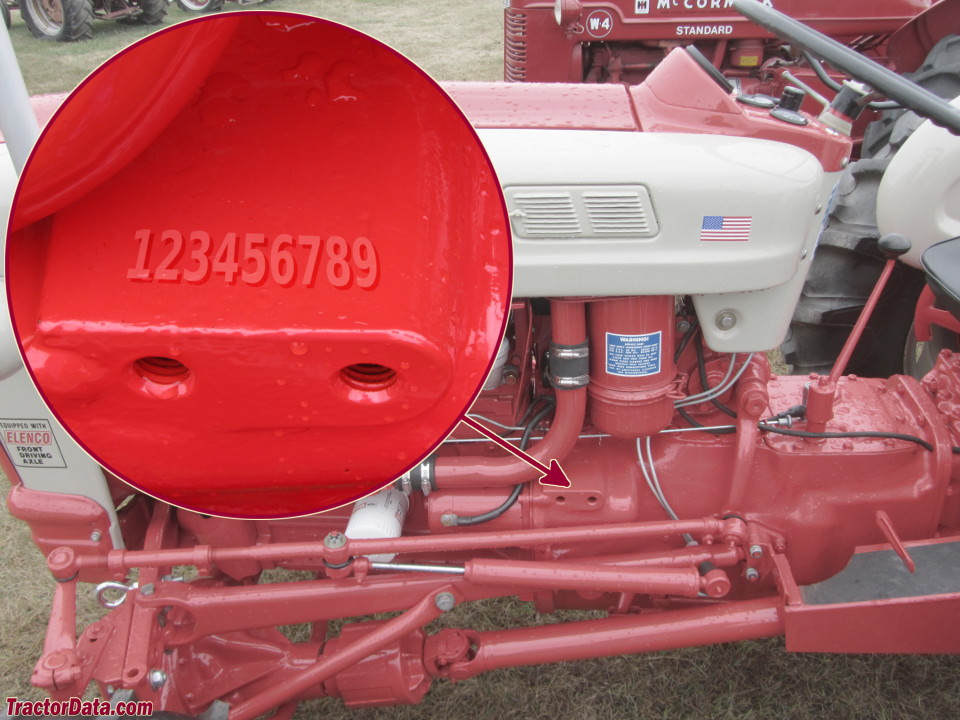

Ford 841 serial number location
Left side of tractor, on top of transmission case behind the starter.
841 Serial Numbers
19571001
195811977
195958312
1960105943
1961131427
1962155531

FAQ: How to read a serial number table.
Electrical
Groundpositive (6V)
 negative (12V)
Charging systemgenerator
Charging amps20
Battery volts6 (gas/lp)
 12 (diesel)
Battery AH80 (6V)
 135 (12V)
References
841 Powermaster references literature
Tractors For Industrial Use published in 1958, by Ford
1200 Farm Loaders published in 1966, by Ford
1955-1960 Tractor Shop Manual (SE-8175) published in 1961
Power Up with Ford published in 1957
Diesel Tractors published in 1959, by Ford
New Diesel Tractors published in 1958, by Ford
New Ford 801 Series Powermaster Tractors published in 1957
Ford Powermaster Tractors published in 1958
Ford Powermaster Tractors published in 1959
