CaseIH STX375

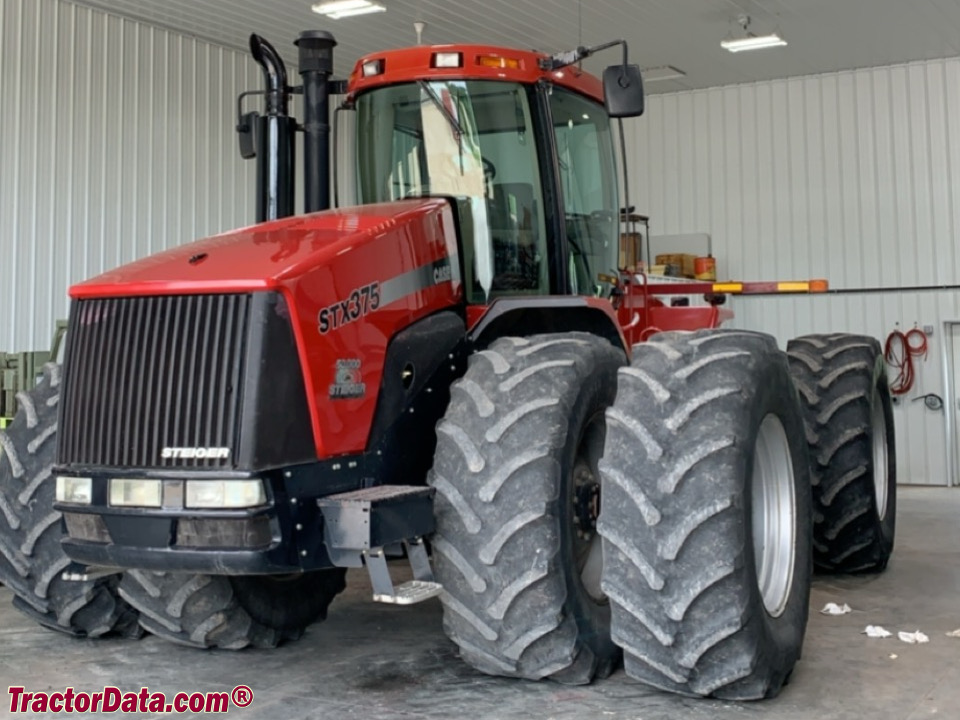

CaseIH STX375 tractor photo
2000 - 2005
Steiger STX Series
Four-wheel Drive (4WD) tractor
Series map:
STX325
STX375
STX425
325.0hp
375.0hp
425.0hp
Production
ManufacturerCaseIH
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
The STX375 is the same as the New Holland TJ375.
Variants
STX375wheeled tractor
STX375QTcrawler tractor
TJ375similar New Holland model
CaseIH STX375 Engine
Cummins 14.9L 6-cyl diesel
Fuel tank300 gal
1135.5 L
Engine details ...
CaseIH STX375 Transmissions
16-speed full power shift
24-speed fully synchronized
Transmission details ...
CaseIH STX375 Power
Engine375 hp
279.6 kW
Drawbar (claimed)305 hp
227.4 kW
PTO (claimed)330 hp
246.1 kW
Drawbar (tested)313.95 hp
234.1 kW
PTO (tested)386.64 hp
288.3 kW
Performance test details ...
Mechanical
Four-wheel drive
Final drivesinboard planetary (standard)
 compound planetary (HD/scraper)
Steeringhydrostatic power
Integrated hydraulic wet disc brakes
Surveyor Cab standard.
Hydraulics
Typepressure flow compensated (PFC)
Rear valves4 to 7
SCV flow35 gpm
132.5 lpm
Total flow40 gpm
151.4 lpm
 55 gpmOptOptional
208.2 lpm
Tractor hitch
Rear TypeIVN/III
Rear lift (at 24"/610mm)19500 lbs
8845 kg
Power Take-off (PTO)
Rear PTOindependent OptOptional
Rear PTO Type1000 (1.75)
Dimensions & Tires
Wheelbase154 inches
391 cm
Weight37610 lbs
17059 kg
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Battery volts12
References
STX375 references literature
STX Series Steiger Tractors published in 2000, by CaseIH*
STX Series Steiger Tractors published in 2002, by CaseIH*
*Publication contains known errors.
