CaseIH STX380
|
|
| Production | |
| Manufacturer | CaseIH |
| Four-wheel Drive (4WD) tractor | |
| Built in Fargo, North Dakota, USA | |
| CaseIH STX380 Engine | |
| Iveco 12.9L 6-cyl diesel | |
| Fuel tank | 300 gal 1135.5 L |
 Engine details ... | |
| CaseIH STX380 Transmissions | |
| 16-speed full power shift | |
| 24-speed fully synchronized | |
 Transmission details ... |
| CaseIH STX380 Power | |
| Engine | 380 hp 283.4 kW |
| PTO (claimed) | 335 hp 249.8 kW |
| Drawbar (tested) | 319.41 hp 238.2 kW |
| PTO (tested) | 390.87 hp 291.5 kW |
 Performance test details ... | |
| Mechanical | |
| Drive | 4x4 articulared 4WD |
| Final drives | inboard 4-planetary |
| inboard compound planetary (STX380 HD) | |
| Steering | hydrostatic power |
| Integrated hydraulic wet disc brakes | |
| Surveyor cab standard with air-conditioning. Optional luxury cab with leather trim and seating. | |

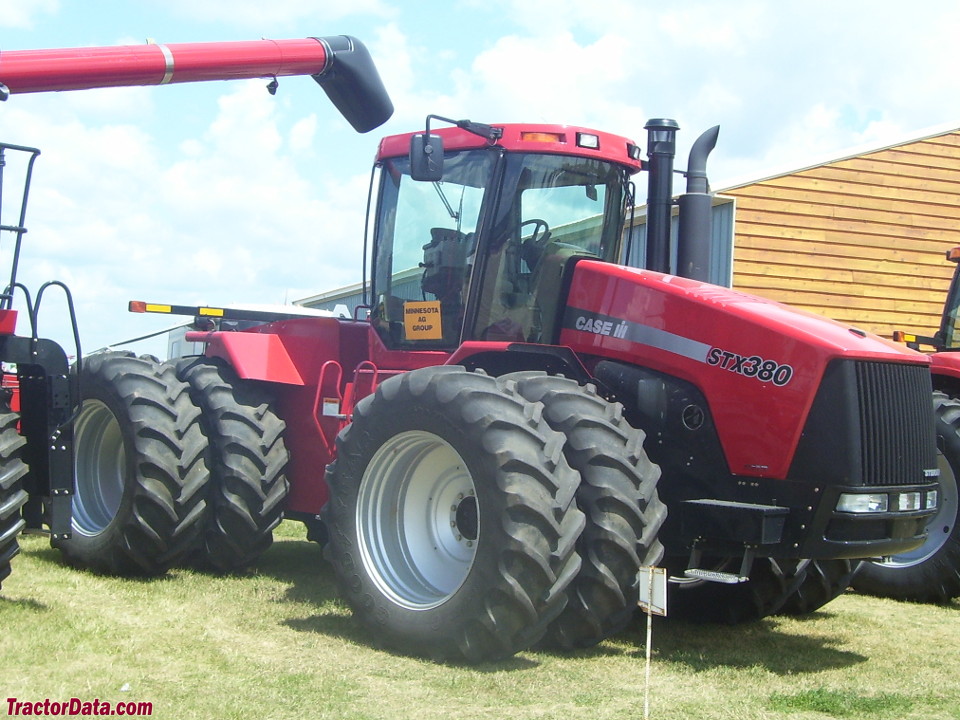

| Photos | |
 | |
 CaseIH STX380 photos... | |
| Hydraulics | |
| Type | pressure flow compensated |
| Valves | 4 |
| Pump flow | 40 gpm 151.4 lpm |
| 55 gpm (High capacity) 208.2 lpm | |
| 90 gpm (TwinFlow) 340.7 lpm | |
| Tractor hitch | |
| Rear Type | IVN |
| Rear lift (at 24"/610mm) | 19620 lbs 8899 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent OptOptional |
| Rear PTO Type | 1000 (1.75) |
| Dimensions & Tires | |
| Wheelbase | 154 inches 391 cm |
| Weight | 37900 to 41605 pounds |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| STX Steiger published in 2006, by CaseIH | |
| STX Series Steiger Tractors published in 2006, by CaseIH |
