Tractors > CaseIH > STX375

CaseIH STX375 Engine



CaseIH STX375 tractor photo
2000 - 2005
Steiger STX Series
Four-wheel Drive (4WD) tractor
Series map:
STX325
STX375
STX425
325.0hp
375.0hp
425.0hp
Engine Detail
Cummins QSX 15
turbocharged aftercooled diesel
6-cylinder
liquid-cooled inline
Displacement912 ci
14.9 L
Bore/Stroke5.39x6.65 inches
137 x 169 mm
Power375 hp
279.6 kW
Air cleanerdual paper elements
Compression16.5:1
Rated RPM2000
Torque1380 lb-ft
1871.3 Nm
Torque RPM1400
Starter volts12
Oil capacity52 qts
49.2 L

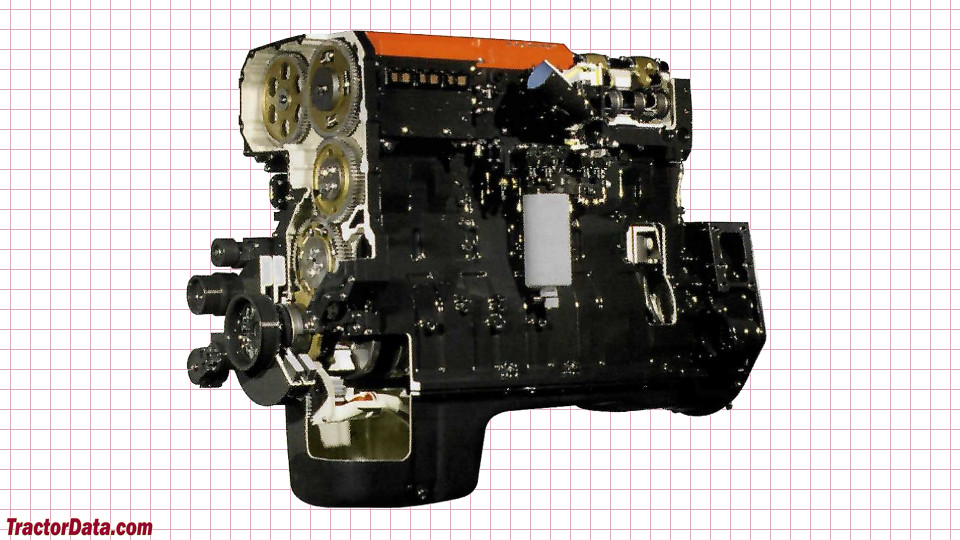

CaseIH STX375 Engine
CaseIH STX375 engine image
