CaseIH STX325
|
|
| Production | |
| Manufacturer | CaseIH |
| Four-wheel Drive (4WD) tractor | |
| Built in Fargo, North Dakota, USA | |
| The CaseIH STX325 is the same as the New Holland TJ325. | |
| Variants | |
| TJ325 | similar New Holland model |
| CaseIH STX325 Engine | |
| CDC 8.9L 6-cyl diesel | |
| Fuel tank | 200 gal 757.0 L |
 Engine details ... | |
| CaseIH STX325 Transmissions | |
| 16-speed full power shift | |
| 24-speed fully synchronized | |
 Transmission details ... |
| CaseIH STX325 Power | |
| Engine | 325 hp 242.4 kW |
| Drawbar (claimed) | 240 hp 179.0 kW |
| PTO (claimed) | 270 hp 201.3 kW |
| Drawbar (tested) | 260.87 hp 194.5 kW |
| PTO (tested) | 320.75 hp 239.2 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Final drives | inboard planetary |
| Steering | hydrostatic power |
| Integrated hydraulic wet disc brakes | |
| Surveyor Cab standard. | |

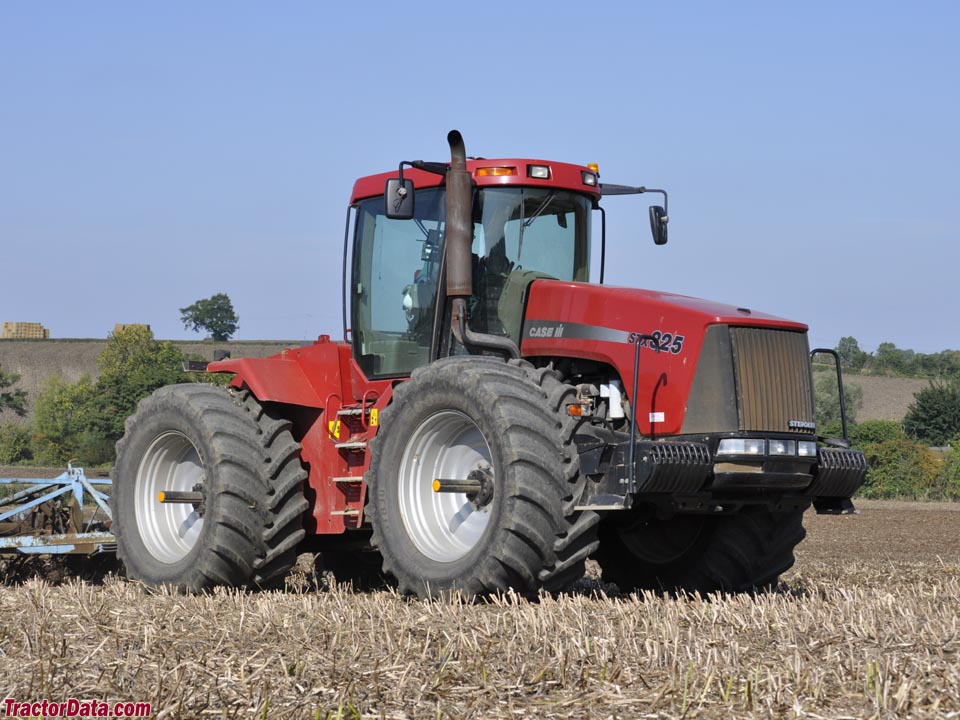

| Photos | |
 | |
 CaseIH STX325 photos... | |
| Hydraulics | |
| Type | pressure flow compensated (PFC) |
| Rear valves | 4 to 7 |
| SCV flow | 35 gpm 132.5 lpm |
| Total flow | 40 gpm 151.4 lpm |
| 55 gpmOptOptional 208.2 lpm | |
| Tractor hitch | |
| Rear Type | IVN/III |
| Rear lift (at 24"/610mm) | 14500 lbs 6577 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent OptOptional |
| Rear PTO Type | 1000 (1.75) |
| Dimensions & Tires | |
| Wheelbase | 139 inches 353 cm |
| 145 inches (ACCUSTEER) 368 cm | |
| Weight | 31925 lbs 14481 kg |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Battery volts | 12 |
| References | |
 | |
| STX Series Steiger Tractors published in 2000, by CaseIH* | |
| STX Series Steiger Tractors published in 2002, by CaseIH* | |
| *Publication contains known errors. |
