John Deere 4310

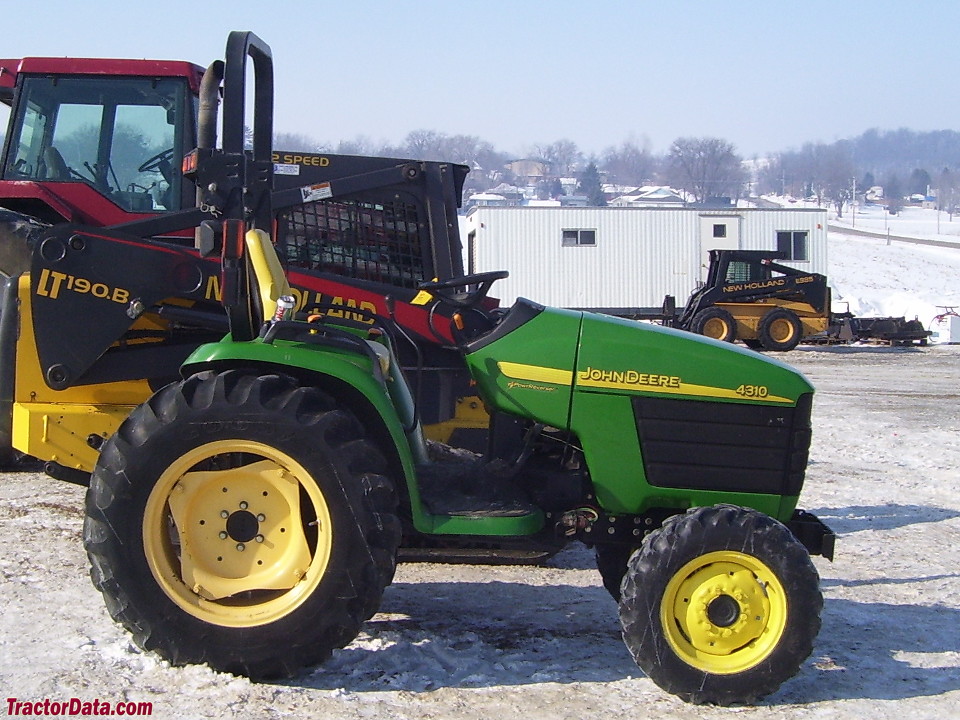

John Deere 4310 tractor photo
2002 - 2004
4000 Ten Compact Series
Compact Utility tractor
Series map:
4210
4310
4410
27.0hp
31.2hp
34.6hp
Production
ManufacturerJohn Deere
Compact Utility tractor
Built in Augusta, Georgia, USA
John Deere 4310 Transmissions
9-speed partially synchronized
hydrostatic
12-speed power shuttle
Transmission details ...
John Deere 4310 Power
Engine (gross)31.2 hp
23.3 kW
PTO (claimed)27 hp
20.1 kW
Mechanical
Two- or four-wheel drive
Final drivesspur gear
Differential lockmechanical rear
Steeringpower
Wet disc brakes
Two-post fixed ROPS. Two-post folding ROPS optional.
Capacity
Fuel10 gal
37.9 L
Hydraulic system6.3 gal (gear)
23.8 L
 6.8 gal (hydro)
25.7 L
Front axle4.7 qts
4.4 L
Hydraulics
Typeopen center
Capacity6.3 gal (gear)
23.8 L
 6.8 gal (hydro)
25.7 L
Pressure2500 psi
172.4 bar
Valves5
Pump flow8.6 gpm
32.6 lpm
Total flow13.9 gpm
52.6 lpm
Steering flow5.3 gpm
20.1 lpm
Tractor hitch
Rear TypeI
Rear lift (at 24"/610mm)2,200 lbs
997 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchwet disc
Rear PTO Type540 (1.375)
Engine RPM540@2600
Mid PTOindependent OptOptional
Mid PTO Type2100
Dimensions & Tires
Wheelbase68 inches
172 cm
Weight2600 to 2900 pounds
Front tire5.00-15
Rear tire11.2-24
Full dimensions and tires ...
John Deere 4310 attachments
60" mid-mount mower deck
72" mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...
4310 Serial Number Location
John Deere 4310 serial number location
On right side of tractor frame above the front axle.
4310 Serial Numbers
2002130001
2003230001
2004330001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps40
 55 (optional)
Battery CCA500
Battery volts12
References
4310 references literature
Operator's Manual 410 and 420 Loaders (OMC49370) published in 2005
4000 TEN Series 18 To 48 HP published in 2001, by John Deere
The New John Deere 4000 TEN Series Tractors published in 2002
4000 TEN Series - The tractor redefined published in 2001, by John Deere
4000 TEN Series - Take Command published in 2001, by John Deere
4000 TEN Series Product Information Handbook published in 2003, by John Deere
Commercial & Consumer Equipment Purchase Guide published in 2005, by John Deere
