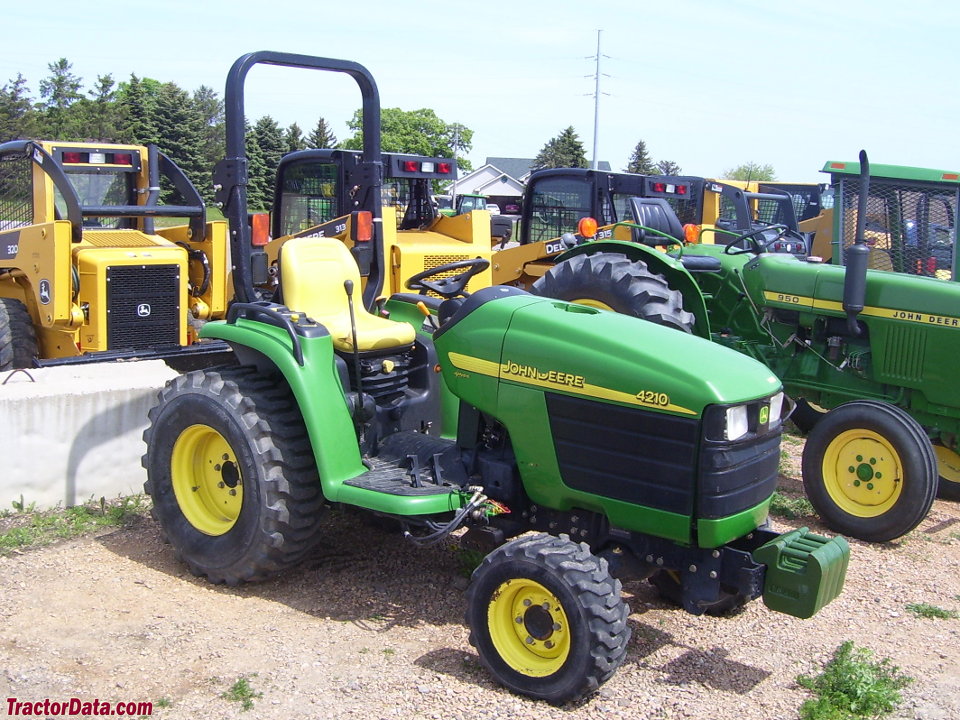

John Deere 4210
| | 2002 - 2004 |
| 4000 Ten Compact Series | | Compact Utility tractor |
|
Series map:
4115
4210
4310
24.0hp
27.0hp
31.2hp
| Production |
| Manufacturer | John Deere
|
| Compact Utility tractor |
| Built in Augusta, Georgia, USA |
| John Deere 4210 Power |
| Engine (gross) | 27 hp
20.1 kW
|
| PTO (claimed) | 23.5 hp (gear)
17.5 kW
|
| | 22 hp (hydro)
16.4 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Final drives | spur gear
|
| Differential lock | mechanical rear
|
| Steering | power
|
| Wet disc brakes |
| Two-post fixed ROPS. Two-post folding ROPS optional. |
| Capacity |
| Fuel | 10 gal
37.9 L
|
| Hydraulic system | 6.3 gal (gear)
23.8 L
|
| | 6.8 gal (hydro)
25.7 L
|
| Front axle | 4.7 qts
4.4 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 6.3 gal (gear)
23.8 L
|
| | 6.8 gal (hydro)
25.7 L
|
| Pressure | 2125 psi
146.5 bar
|
| Valves | 5
|
| Pump flow | 7.0 gpm
26.5 lpm
|
| Total flow | 12.3 gpm
46.6 lpm
|
| Steering flow | 5.3 gpm
20.1 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift (at 24"/610mm) | 1,700 lbs
771 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | wet disc
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2600
|
| Mid PTO | independent OptOptional
|
| Mid PTO Type | 2100
|
| 4210 Serial Number Location |
 |
| On right side of tractor frame above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 40
|
| | 55 OptOptional
|
| Battery CCA | 500
|
| Battery volts | 12
|
| References |
 |
| Operator's Manual 410 and 420 Loaders (OMC49370) published in 2005 |
| 4000 TEN Series 18 To 48 HP published in 2001, by John Deere |
| 4000 TEN Series - The tractor redefined published in 2001, by John Deere |
| 4000 TEN Series - Take Command published in 2001, by John Deere |
| 4000 TEN Series Product Information Handbook published in 2003, by John Deere |
| Commercial & Consumer Equipment Purchase Guide published in 2005, by John Deere |
