John Deere 4410


John Deere 4410 tractor photo
2002 - 2004
4000 Ten Compact Series
Compact Utility tractor
Series map:
4310
4410
4510
31.2hp
34.6hp
38.4hp
Production
ManufacturerJohn Deere
Compact Utility tractor
Built in Augusta, Georgia, USA
John Deere 4410 Transmissions
12-speed power shuttle
hydrostatic
Transmission details ...
John Deere 4410 Power
Engine (gross)34.6 hp
25.8 kW
PTO (claimed)30 hp (gear)
22.4 kW
 28.5 hp (hydro)
21.3 kW
Mechanical
Four-wheel drive
Differential lockmechanical
Steeringpower
Wet disc brakes
Two-post ROPS. Foldable ROPS optional.
Photos
No photos of the John Deere 4410 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel10 gal
37.9 L
Hydraulic system6.3 gal (gear)
23.8 L
 6.8 gal (hydro)
25.7 L
Front axle4.7 qts
4.4 L
Hydraulics
Typeopen center
Capacity6.3 gal (gear)
23.8 L
 6.8 gal (hydro)
25.7 L
Pressure2500 psi
172.4 bar
Valves5
Pump flow8.6 gpm
32.6 lpm
Total flow13.9 gpm
52.6 lpm
Steering flow5.3 gpm
20.1 lpm
Tractor hitch
Rear TypeI
Rear lift (at 24"/610mm)2,200 lbs
997 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
Mid PTOoptional
Mid PTO Type2100
Dimensions & Tires
Wheelbase68 inches
172 cm
Weight2,900 lbs
1315 kg
Front tire7.00-14
Rear tire11.2-24
Full dimensions and tires ...
John Deere 4410 attachments
60" mid-mount mower deck
72" mid-mount mower deck
front-end loader
backhoe
Attachment details ...
4410 Serial Number Location
John Deere 4410 serial number location
On right side of tractor frame above the front axle.
4410 Serial Numbers
2002140001
2003240001
2004340001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps40
 55 (optional)
Battery CCA500
Battery volts12
References

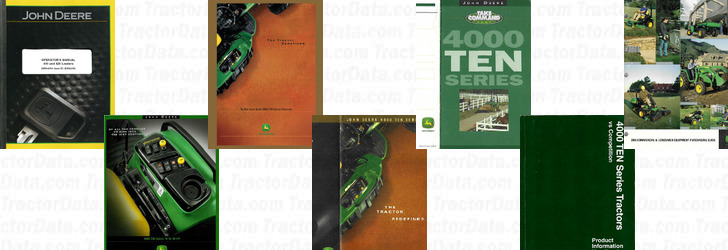

4410 references literature
Operator's Manual 410 and 420 Loaders (OMC49370) published in 2005
The New John Deere 4000 TEN Series Tractors published in 2002
4000 TEN Series - The tractor redefined published in 2001, by John Deere
4000 TEN Series - Take Command published in 2001, by John Deere
4000 TEN Series Product Information Handbook published in 2003, by John Deere
Commercial & Consumer Equipment Purchase Guide published in 2005, by John Deere
DK45/50(C) Owner's Manual (D569-O02) published in 2002
