John Deere 4200
| | 1998 - 2001 |
| 4000 Compact Series | | Compact Utility tractor |
|
Series map:
4100
4200
4300
20.0hp
26.3hp
32.2hp
| Production |
| Manufacturer | John Deere
|
| Compact Utility tractor |
| Built in Augusta, Georgia, USA |
| Original price was $14,000 in 1999 |
| John Deere 4200 Power |
| Engine (gross) | 26.3 hp
19.6 kW
|
| Engine (net) | 24.3 hp
18.1 kW
|
| Gear PTO (claimed) | 21.5 hp
16.0 kW
|
| Hydro PTO (claimed) | 20 hp
14.9 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Final drives | spur gear
|
| Differential lock | mechanical rear
|
| Power steering |
| Differential wet disc brakes |
| Two-post fixed ROPS. Folding ROPS optional. |
| Capacity |
| Fuel | 10 gal
37.9 L
|
| Hydraulic system | 6.3 gal (gear)
23.8 L
|
| | 6.8 gal (hydro)
25.7 L
|
| Front axle | 4.7 qts
4.4 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 6.3 gal (gear)
23.8 L
|
| | 6.8 gal (hydro)
25.7 L
|
| Pressure | 2125 psi
146.5 bar
|
| Valves | 2
|
| Pump flow | 7.3 gpm
27.6 lpm
|
| Total flow | 12.3 gpm
46.6 lpm
|
| Oil type | | 122o↔0oF [50o↔-17oC] | : JD Hy-Gard | | 80o↔-40oF [26o↔-40oC] | : JD Lo Vis Hy-Gard |
|
| Steering flow | 5 gpm
18.9 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift (at 24"/610mm) | 1700 lbs
771 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | mechanical wet disc
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2700
|
| Mid PTO | optional
|
| Mid PTO Type | 2100
|
| Engine RPM | 2100@2700
|

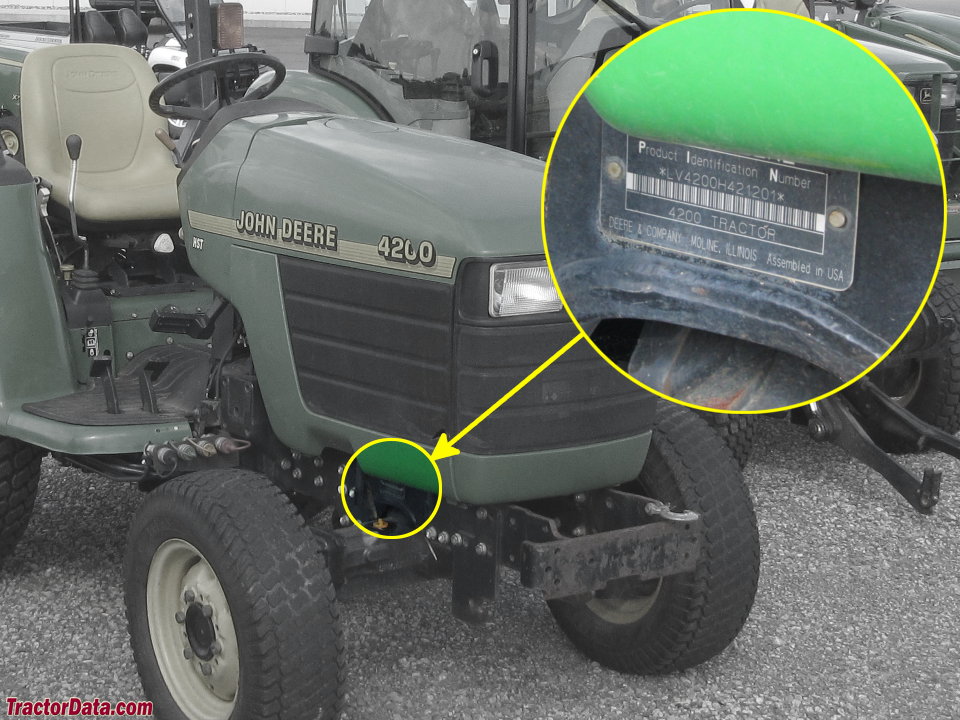

| 4200 Serial Number Location |
 |
| Serial number plate on front-right tractor frame, above front wheel. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 40
|
| Battery CCA | 500
|
| Battery volts | 12
|
| References |
 |
| Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 1999, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 2000, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 2001, by John Deere |
| Operator's Manual 410 and 420 Loaders (OMC49370) published in 2005 |
| 4000 Series Tractors published in 1998, by John Deere |
| 4000 Series Tractors published in 2000, by John Deere |
| 4000 Series Product Information Handbook published in 1998, by John Deere |
| 4000 Series Product Information Handbook published in 2000, by John Deere |
| Rental Equipment published in 2001, by John Deere |
