Tractors > John Deere > 4115

John Deere 4115 Engine



John Deere 4115 tractor photo
2002 - 2004
4000 Ten Compact Series
Compact Utility tractor
Yanmar built
Series map:
4110
4115
4210
20.0hp
24.0hp
27.0hp
Engine Detail
Yanmar 3TNE78A
diesel
3-cylinder
liquid-cooled inline
Displacement73.3 ci
1.2 L
Bore/Stroke3.07x3.31 inches
78 x 84 mm
Power (net)23.5 hp
17.5 kW
Power (gross)24 hp
17.9 kW
Rated RPM2650
Starter volts12
Coolant capacity2.5 qts
2.4 L
Engine Oil

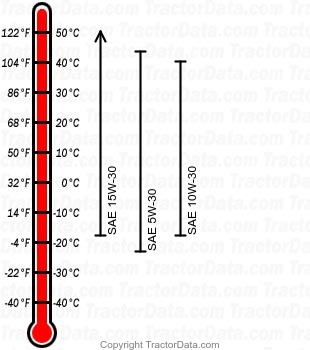

4115 diesel engine oil chart
Oil capacity2.1 qts
2.0 L
