CaseIH 9370

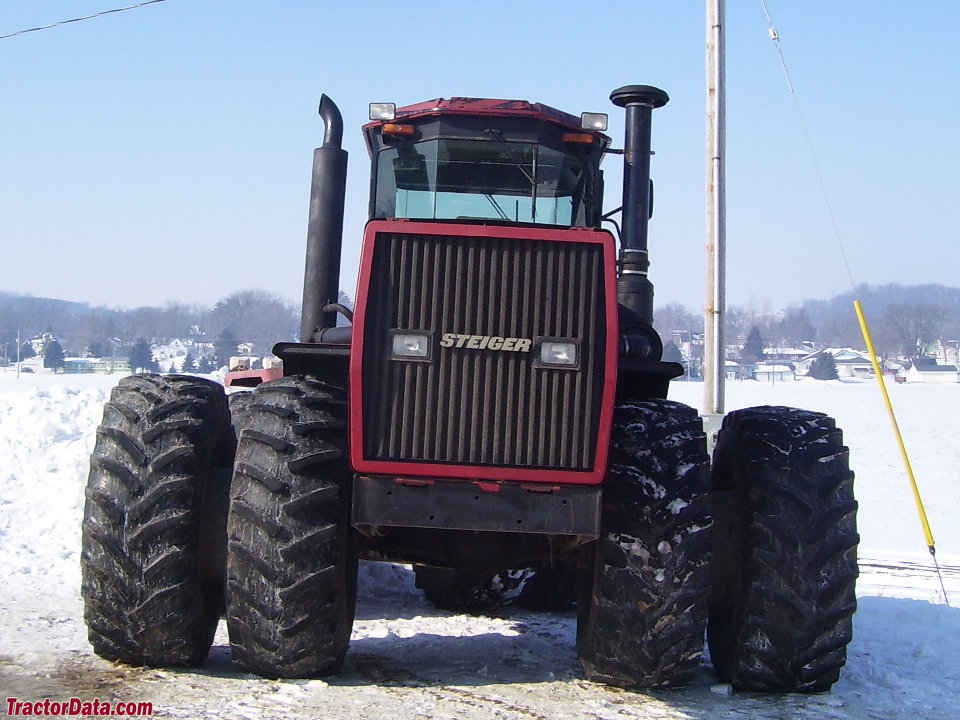

CaseIH 9370 tractor photo
1996 - 1999
9300 Series
Four-wheel Drive (4WD) tractor
Series map:
9350
9370
9380
310.0hp
360.0hp
400.0hp
Production
ManufacturerCaseIH
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Original price was $139,000 in 1999
Variants
9370wheeled tractor
9370QTQuadtrac crawler
CaseIH 9370 Engine
Cummins 14.0L 6-cyl diesel
Fuel tank270 gal
1022.0 L
Engine details ...
CaseIH 9370 Transmissions
12-speed full powershift
12-speed
24-speed
Transmission details ...
CaseIH 9370 Power
Engine (gross)360 hp
268.5 kW
PTO (claimed)310 hp
231.2 kW
Drawbar (tested)286.17 hp
213.4 kW
PTO (tested)330.65 hp
246.6 kW
Performance test details ...
Mechanical
Four-wheel drive
Articulated power steering
Hydraulic disc brakes
Cab standard with air-conditioning.
Hydraulics
Typeclosed center
Pressure2900 psi
200.0 bar
Valves4
Pump flow27 gpm (Power shift)
102.2 lpm
 30 gpm (Synchro shift)
113.6 lpm
Steering flow31 gpm (Power shift)
117.3 lpm
 34 gpm (Synchro shift)
128.7 lpm
Tractor hitch
Rear TypeIV
Rear lift (at 24"/610mm)17000 lbs
7711 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000
Dimensions & Tires
Wheelbase144 inches
365 cm
Weight33786 lbs
15325 kg
Front tire20.8R-38
Rear tire20.8R-38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps125
Batteries3
Battery CCA625
Battery volts12
References
9370 references literature
Steiger 9300 Series 4WDs published in 1996, by CaseIH
Product Insight: 9300 STEIGER vs. Agcostar 8360 & 8425 published in 1996
