| 1996 - 1999 |
9300 Series | Four-wheel Drive (4WD) tractor |
|
Series map:
9350
9370
9380
310.0hp
360.0hp
400.0hp
Transmission options |
12-speed full powershift |
12-speed |
24-speed |
Transmission |
Type | full powershift
|
Gears | 12 forward and 3 reverse
|
Clutch | wet disc
|
Speeds |
|
Transmission |

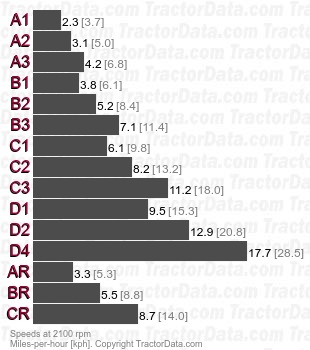

Transmission | SynchroShift
|
Gears | 12 forward and 3 reverse
|
Clutch | wet disc
|
Three synchronized gears (1-3) in four synchronized ranges (A-D). |
Speeds |
|
Transmission |

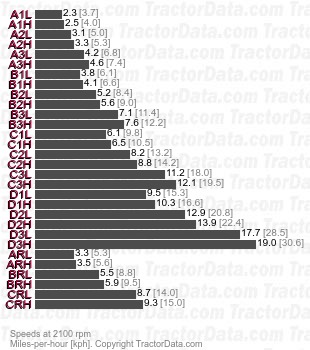

Transmission | Hi-Lo SynchroShift
|
Gears | 24 forward and 6 reverse
|
Clutch | wet disc
|
Three synchronized gears (1-3) in four synchronized ranges (A-D) with a two-speed high/low shift. |
Speeds |
|
