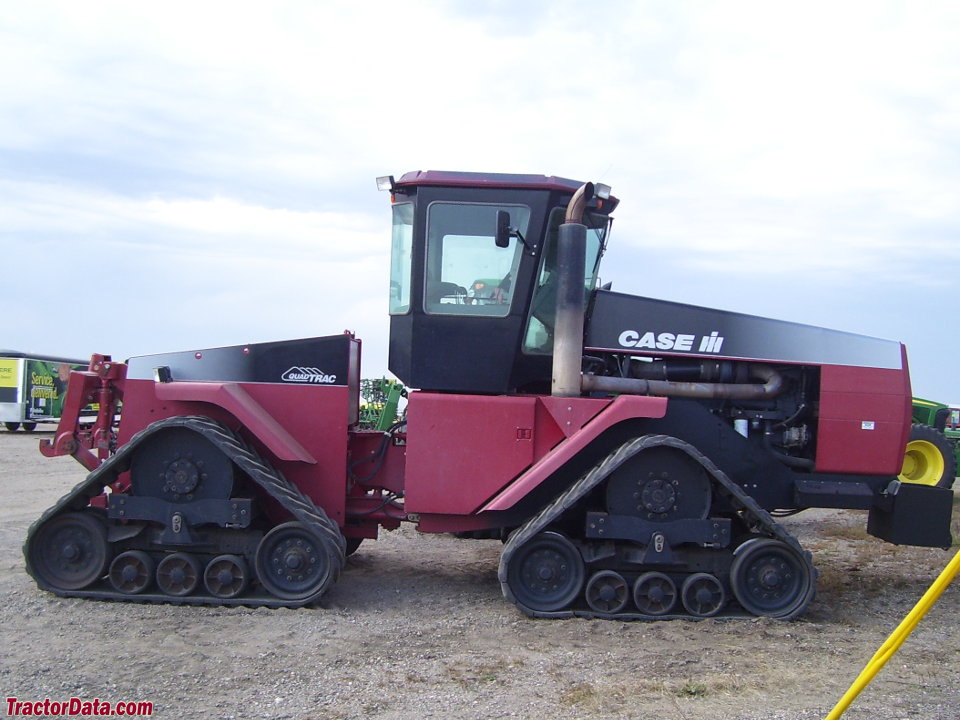

CaseIH Quadtrac 9370QT
| | 1996 - 1999 |
| 9300 Series | | Articulated Crawler tractor |
|
Series map:
9370QT
9380QT
360.0hp
400.0hp
| Production |
| Manufacturer | CaseIH
|
| Articulated Crawler tractor |
| Built in Fargo, North Dakota, USA |
| Original price was $190,000 in 1999 |
| Variants |
| 9370 | wheeled tractor
|
| 9370QT | Quadtrac crawler
|
| CaseIH 9370QT Power |
| Engine | 360 hp
268.5 kW
|
| PTO (claimed) | 315 hp
234.9 kW
|
| Mechanical |
| Drive | crawler
|
| Articulated power steering |
| Wet disc brakes |
| Cab standard with air-conditioning. |
| Hydraulics |
| Type | closed center
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 4
|
| Pump flow | 27 gpm
102.2 lpm
|
| Steering flow | 31 gpm
117.3 lpm
|
| Tractor hitch |
| Rear Type | IV
|
| Rear lift (at 24"/610mm) | 17000 lbs
7711 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear RPM | 1000
|
| 9370QT Serial Location |
 |
| Left-side front fender next to steps. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 125
|
| Batteries | 3
|
| Battery CCA | 625
|
| Battery volts | 12
|
| References |
 |
| Steiger 9300 Series 4WDs published in 1996, by CaseIH |
| Quadtrac published in 1996, by CaseIH |
| Page information |
| Contact: Peter Easterlund |
| Updated on August 22, 2022 |
| Copyright 2022 TractorData LLC |
©2000-2022 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
