CaseIH 9370 Engine


CaseIH 9370 tractor photo
1996 - 1999
9300 Series
Four-wheel Drive (4WD) tractor
Series map:
9350
9370
9380
310.0hp
360.0hp
400.0hp
Engine Detail
Cummins N14-A368
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement855 ci
14.0 L
Bore/Stroke5.50x6.00 inches
140 x 152 mm
Power (gross)360 hp
268.5 kW
Air cleanerdual paper elements
Compression18.5:1
Rated RPM2100
Idle RPM850-2300
Starter volts12
Oil capacity40.8 qts
38.6 L
Oil change250 h
Coolant capacity66 qts
62.5 L
CaseIH 9370 Engine

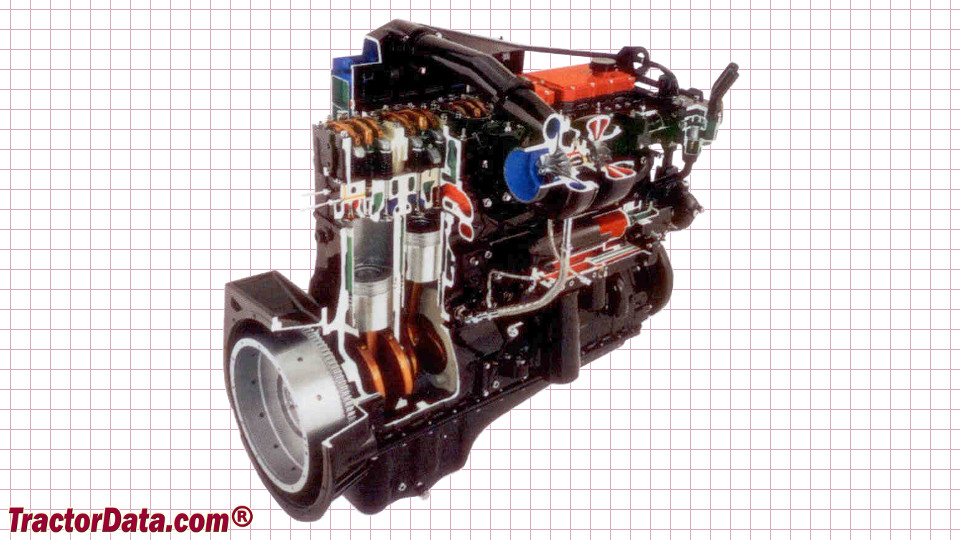

CaseIH 9370 engine image
